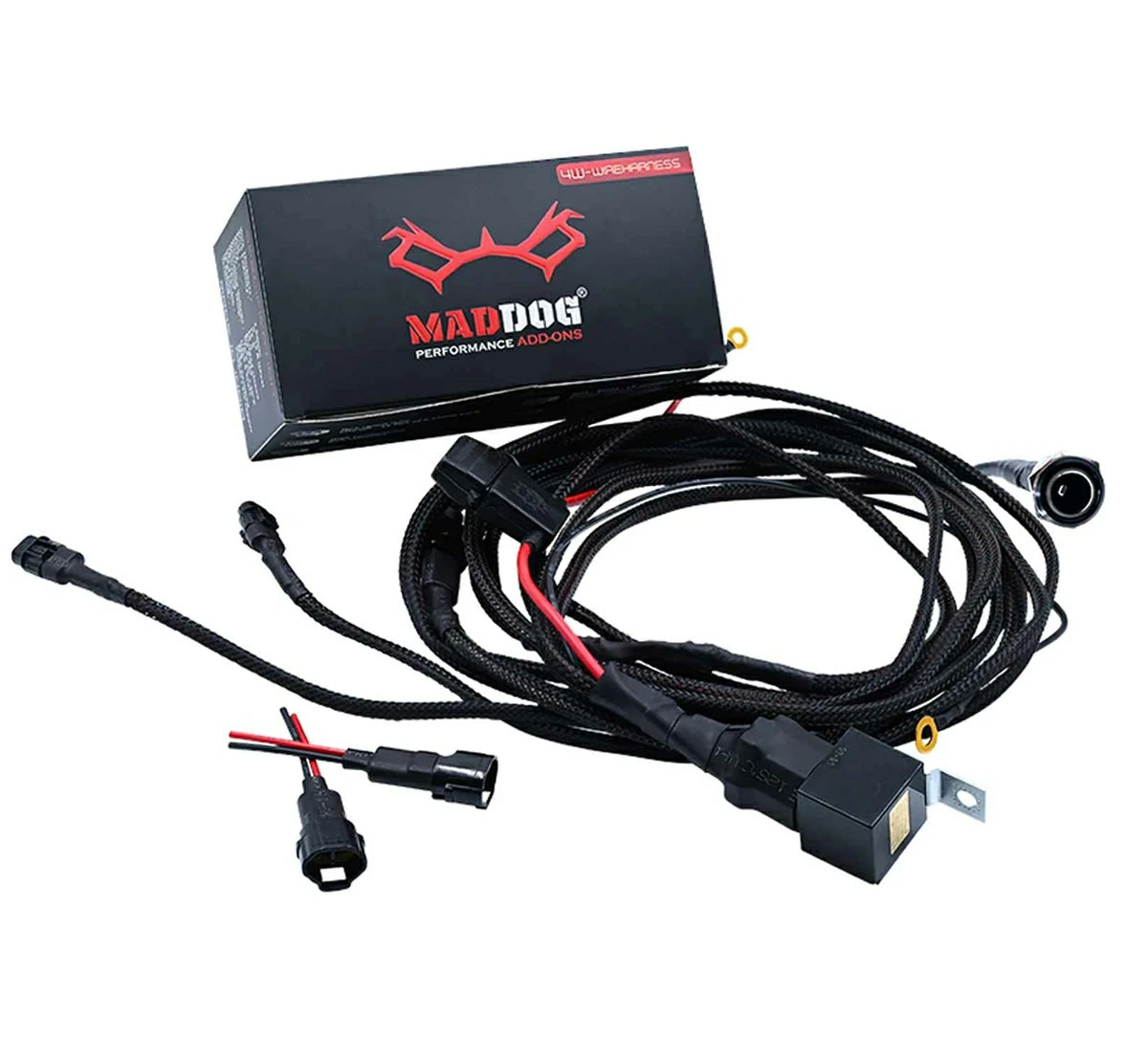

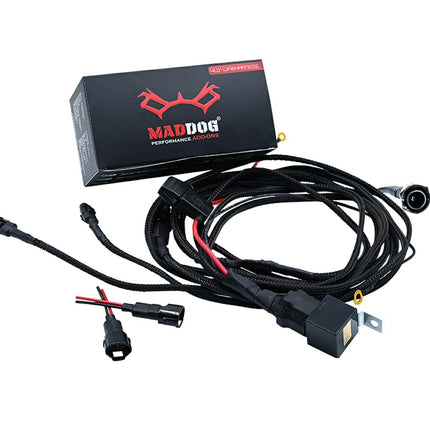

Maddog 4-Wheeler Wire Harness with Switch – Heavy-Duty Waterproof Auxiliary Light Wiring Kit (Up to 150W)

The Maddog 4-Wheeler Wire Harness with Switch is a heavy-duty auxiliary light wiring solution designed specifically for 4-wheelers, SUVs, ATVs, and off-road vehicles running on 12V electrical systems. Built as a complete plug-and-play system, this off-road light wiring harness provides a safe, controlled, and reliable method to power auxiliary lighting without modifying or interfering with the vehicle’s factory wiring.

Auxiliary lights such as fog lamps, driving lights, and light bars draw significant electrical current and require stable power delivery. Improper wiring methods like direct battery tapping or undersized cables cause voltage drops and overheating, risking electrical damage. The Maddog 4-Wheeler Wire Harness with Switch addresses these with a dedicated, automotive-grade power circuit made for auxiliary lighting loads.

Designed for High-Load Off-Road Light Wiring

This wiring harness handles up to 15 Amps or 150 Watts, ideal for common auxiliary lighting setups on 4-wheelers and off-road vehicles. It ensures stable current delivery for consistent brightness without flicker or power drop during use.

The system fits 12V DC electrical architectures in SUVs, ATVs, and off-road vehicles. Using a dedicated harness reduces electrical stress on factory wiring, improving system reliability.

Weatherproof Off-Road Light Wiring Construction

Off-road and utility vehicles face rain, mud, dust, heat, and vibration. To endure these, the Maddog 4-Wheeler Wire Harness with Switch employs IP68-rated waterproof connectors. These sealed connectors block moisture, dust, and corrosion effectively.

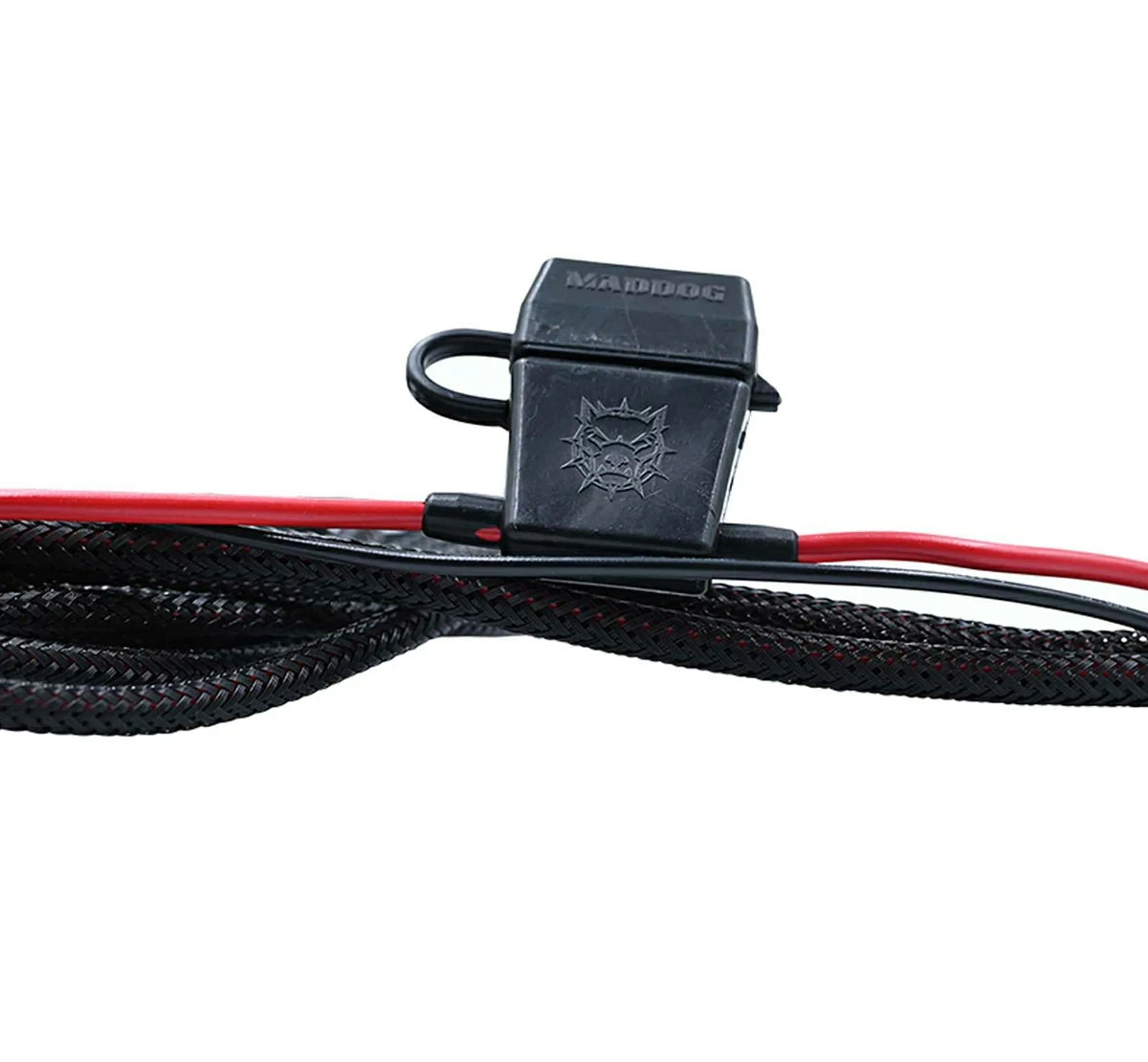

The wiring uses fire-retardant automotive-grade insulation to resist high temperatures and insulation breakdown. A braided mesh sleeve protects against abrasion, debris, and wear in engine bays and underbody routes.

Integrated Switch for Independent Control

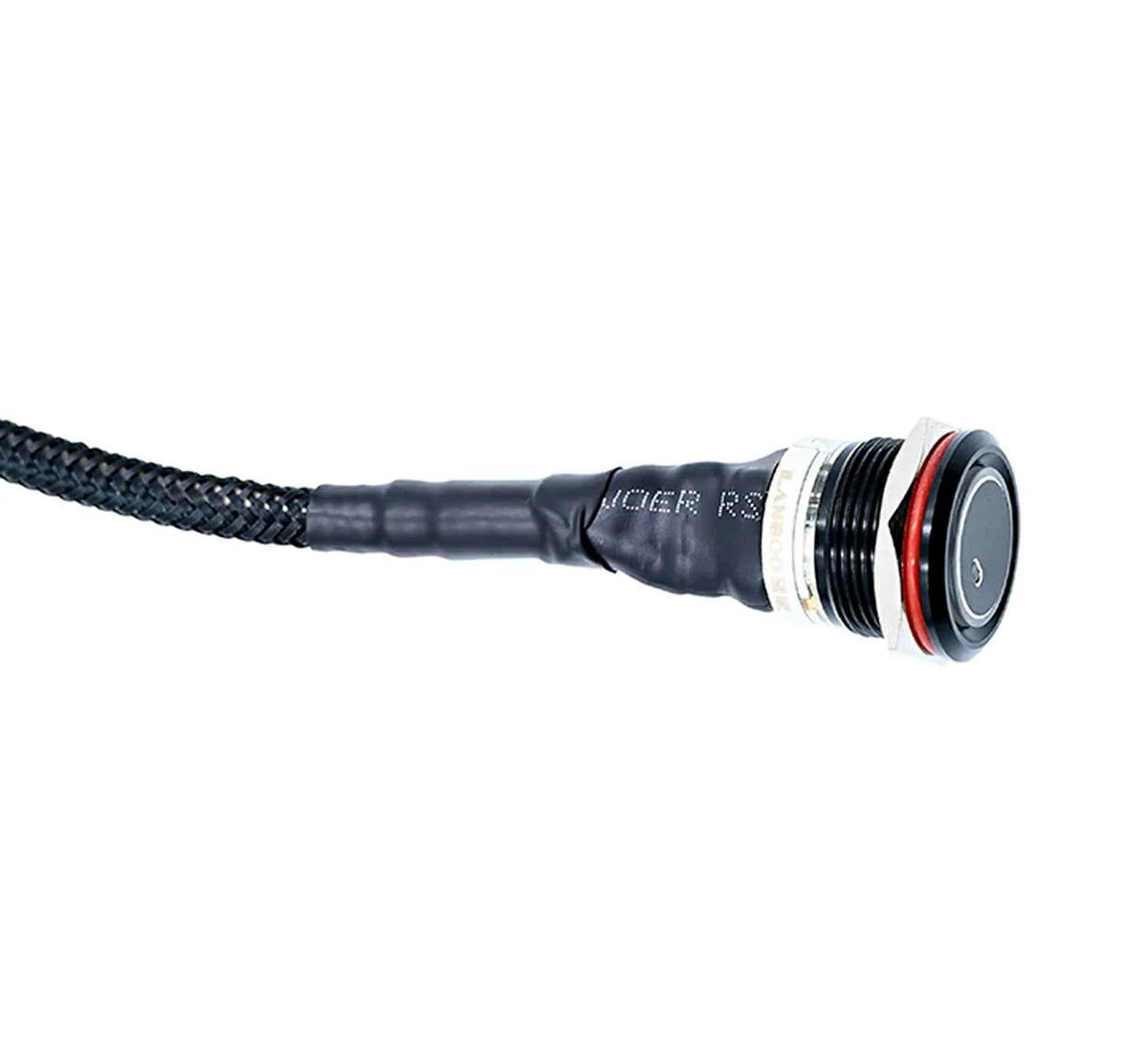

A pre-installed waterproof push-button switch lets users control auxiliary lights separately from factory lighting. This avoids overloading stock switches or external relays.

The switch allows flexible mounting inside cabin or dashboard areas. As it’s integrated, installation is simpler and wiring stays tidy.

Plug-and-Play Installation Design

The Maddog 4-Wheeler Wire Harness is a plug-and-play solution, requiring no cutting, splicing, soldering, or permanent modifications. It uses standard connectors and logical routing, suitable for professionals and DIY enthusiasts.

Because it acts as an independent auxiliary circuit, the harness can be removed or replaced without permanent changes to vehicle wiring.

Vehicle Compatibility and Application Scope

This wiring harness suits 4-wheelers, SUVs, ATVs, and off-road vehicles with 12V electrical systems. It powers auxiliary fog lamps, driving lights, and compact LED bars within the 150W load limit.

It’s not recommended for motorcycles, which have different loads, battery size, and space. For two-wheelers, a dedicated wiring harness is advised.

Long-Term Reliability of Off-Road Light Wiring

Isolating auxiliary lights from factory circuits, the Maddog harness enhances long-term reliability by reducing electrical stress. Proper routing lowers chafing, heat damage, and accidental disconnections during off-road rides.

Regular visual checks during servicing ensure connectors stay secure and wiring remains damage-free, especially in vibration-prone conditions.

What’s Included

Each kit contains one complete Maddog 4-Wheeler Wire Harness with integrated switch alongside necessary connectors and protection. Components form a unified auxiliary lighting off-road light wiring circuit.
