All-in-One Auxiliary Light Controller | IP67 | 12V Plug & Play
Complete Lighting Control in One Integrated System
The Maddog Switch Pro with Integrated Wire Harness Pro is engineered as a consolidated control and power delivery solution for auxiliary lighting systems. Designed for riders who want structured installation, minimal cockpit clutter, and advanced lighting functionality, this all-in-one unit combines the Switch Pro controller with the Wire Harness Pro into a single integrated system.
By eliminating separate wiring components and external switch units, the system simplifies installation while maintaining electrical stability and performance consistency. It is purpose-built for riders who rely on auxiliary lighting during touring, off-road riding, and night highway travel.
This is Maddog’s consolidated lighting control architecture — designed for reliability and clean integration.
All-in-One Integrated Design
Unlike modular setups that require separate harnesses and switches, this system integrates both components into a unified assembly.
Integration benefits include:
Reduced wiring clutter
Simplified installation routing
Compact handlebar layout
Cleaner electrical architecture
This reduces potential connection points and enhances installation consistency.
The unit is designed exclusively to function with the included Wire Harness Pro.
Plug-and-Play Installation
The Switch Pro system is engineered for direct plug-and-play installation.
Installation features include:
No wire cutting
No splicing
Pre-configured connectors
Dedicated harness integration
This minimizes installation errors and ensures correct electrical alignment.
Professional installation is recommended for proper mounting, fuse protection, and safe routing.
On/Off Control with Tactile Feedback
The Switch Pro features intuitive tactile feedback designed for glove-friendly operation.
Switch control provides:
Primary on/off activation
Immediate response
Clear button feedback
Minimal input delay

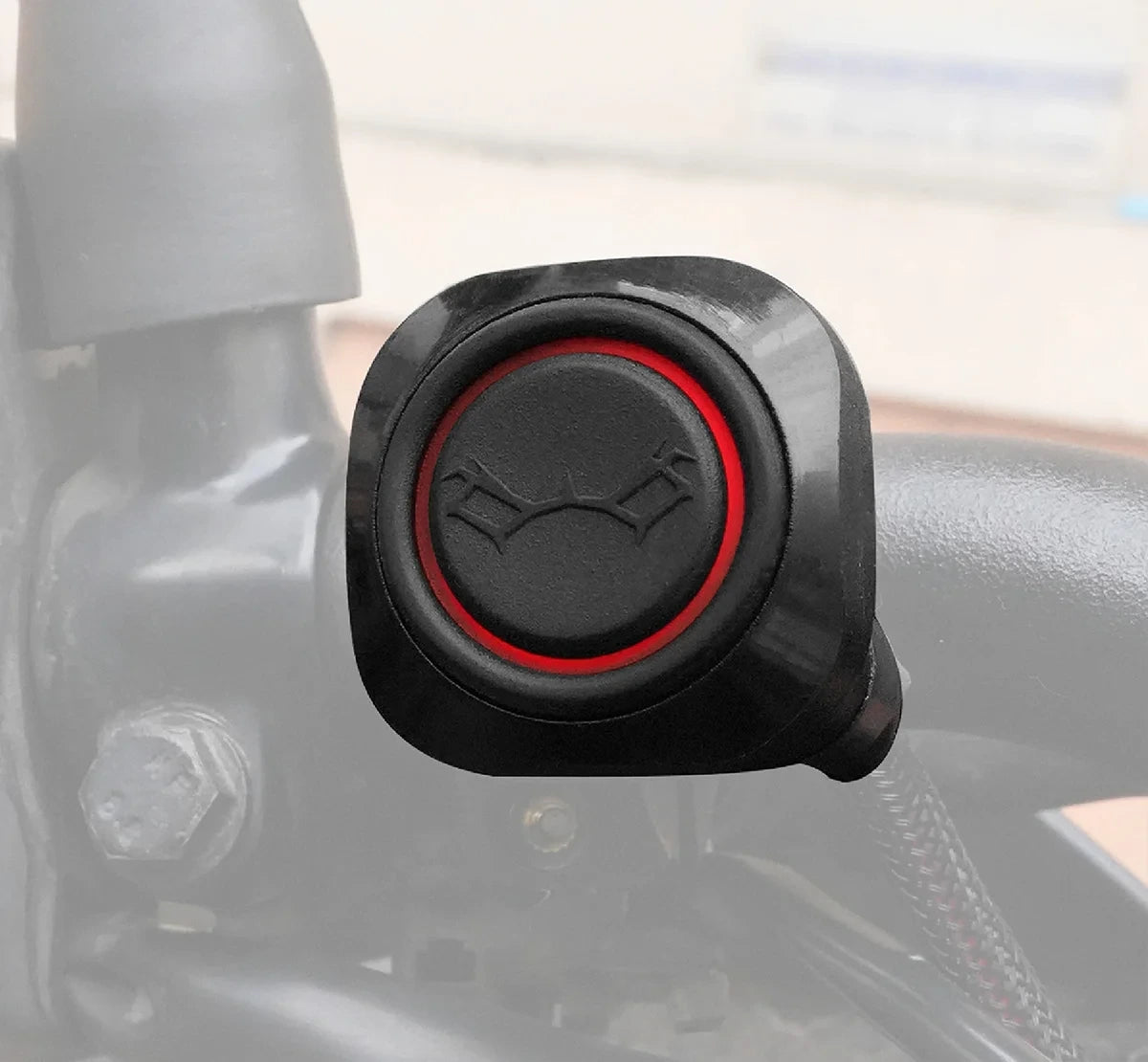

The red illumination ring enhances visibility during low-light conditions without excessive glare.
Integrated Pass Function
The system includes a Pass function designed for temporary light activation.
Pass mode enables:
Instant flash of auxiliary lights
Improved signaling for overtaking
Enhanced momentary visibility
This function provides additional control during highway riding scenarios.
Beacon Mode Functionality
The Beacon mode activates a controlled flashing pattern.
Beacon functionality supports:
Emergency signaling
Temporary visibility alerts
Low-visibility riding conditions
Use of beacon or strobe patterns should comply with local traffic regulations.
Weather-Resistant Construction (IP67)
The Maddog Switch Pro system is IP67 certified.
IP67 rating indicates:
Protection against dust ingress
Resistance to water exposure under defined conditions
Construction materials include:
High-grade polycarbonate housing
Sealed silicone components
Weather-resistant connectors
Designed for use in:
Rain riding
Adventure terrain
Dust-heavy environments
Long-distance touring
Proper installation ensures long-term durability.
12V Electrical System Compatibility
The Switch Pro operates on standard 12V DC motorcycle electrical systems.
It is designed exclusively to work with:
Included Maddog Wire Harness Pro
Not Compatible With:
Older Maddog harness systems
Maddog Dual Wire Harness Pro
Maddog Dimmer
Other aftermarket harness systems
Compatibility should be verified prior to installation.
Compact Cockpit Integration
The integrated design reduces visible wiring and simplifies handlebar layout.
Mounting benefits include:
Compact footprint

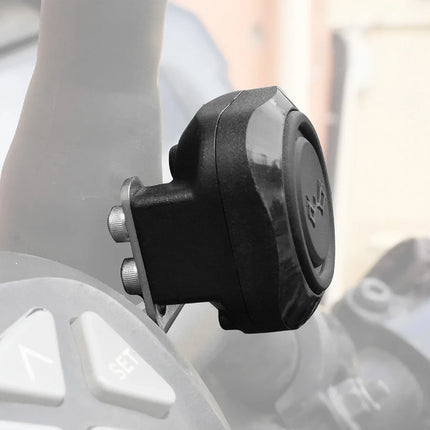

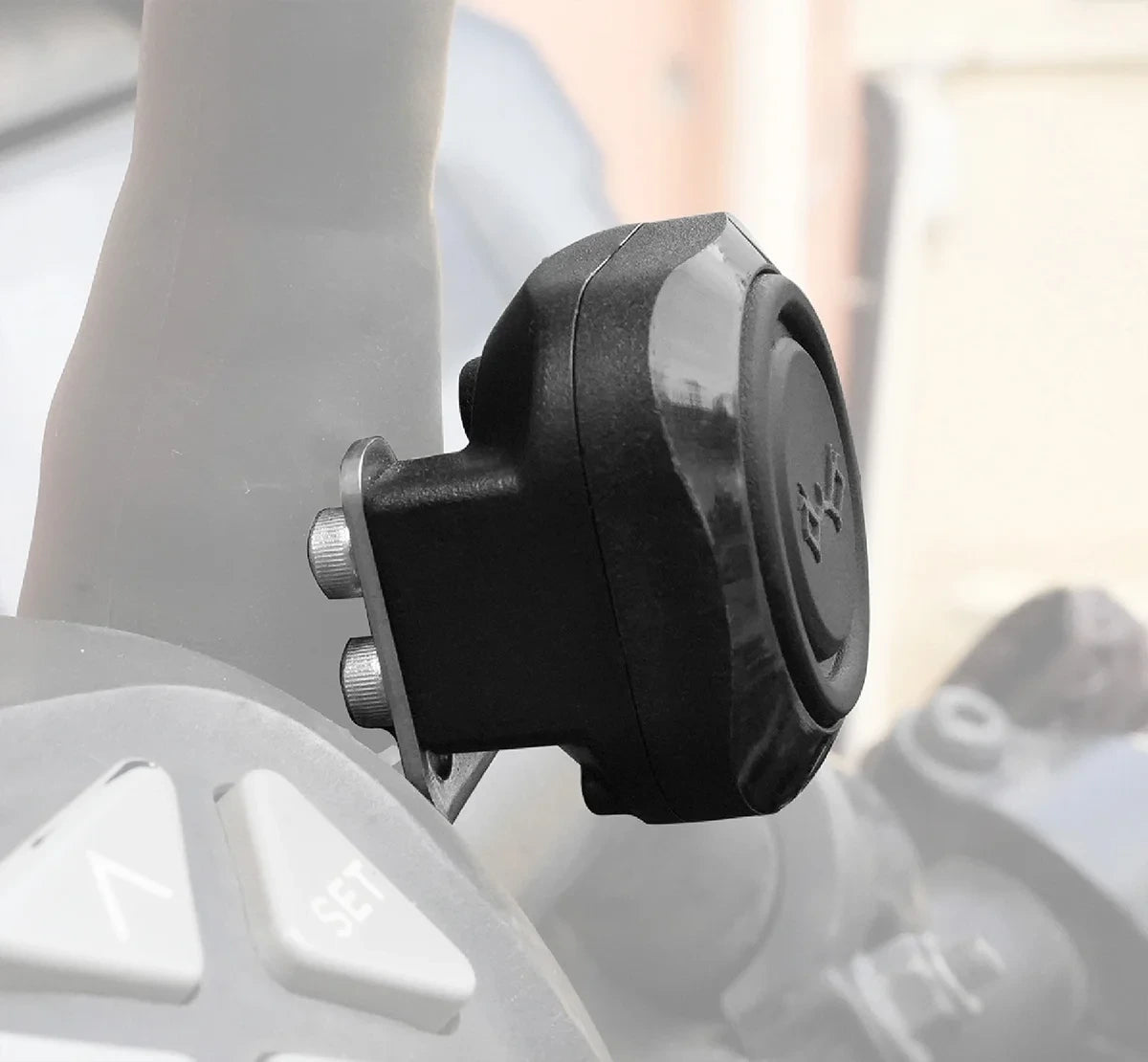

Mirror clamp compatibility

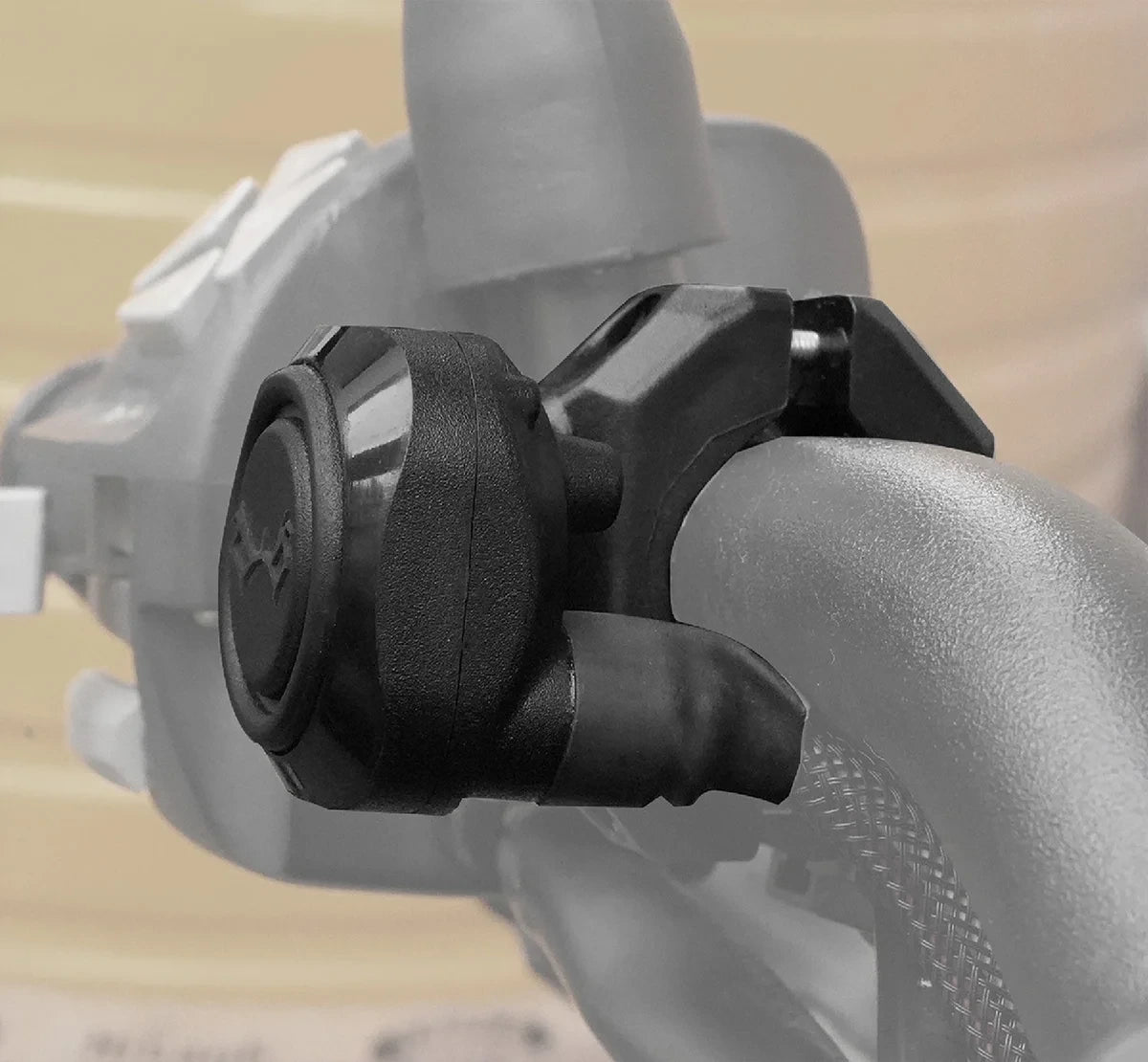

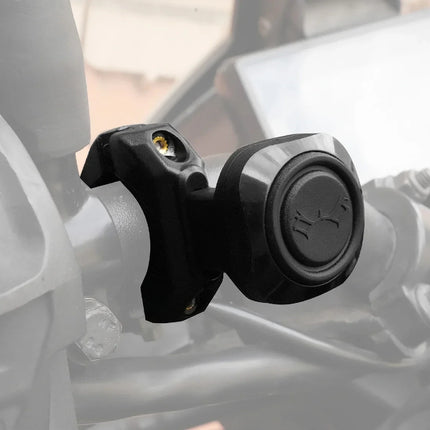

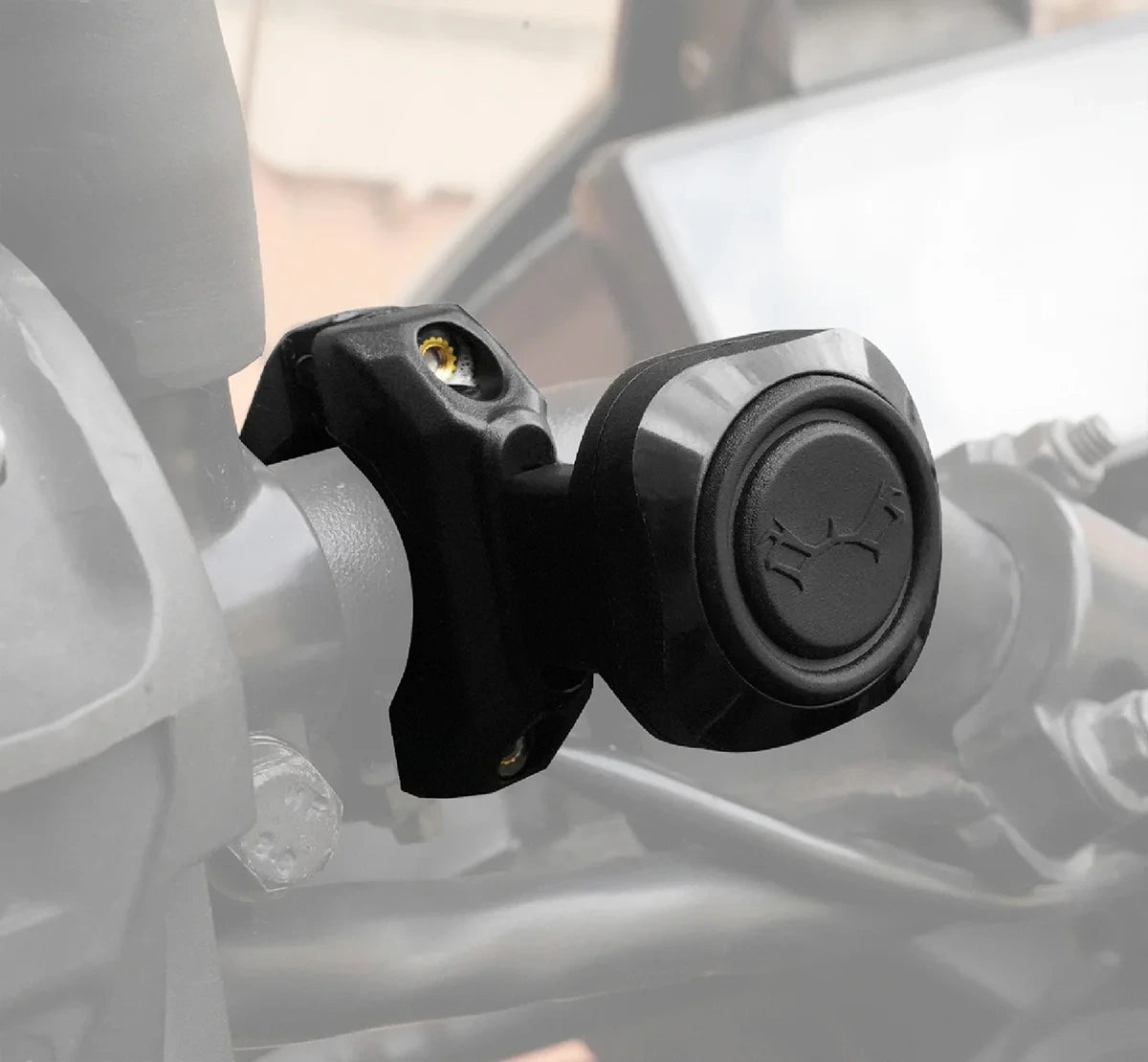

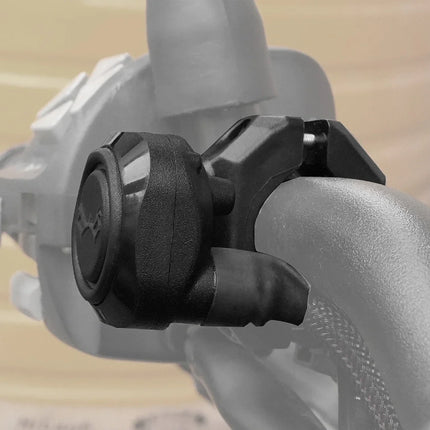

Handlebar clamp compatibility
Balanced aesthetic alignment
The matte-black finish and red illumination ring provide a modern, cohesive appearance.
Ideal Applications
Touring motorcycles
Adventure motorcycles
Off-road lighting systems
Highway night riding setups
Dual auxiliary light configurations
The Switch Pro is intended for riders seeking an integrated, premium auxiliary lighting control system.
Kit Contents
1 × Maddog Switch Pro

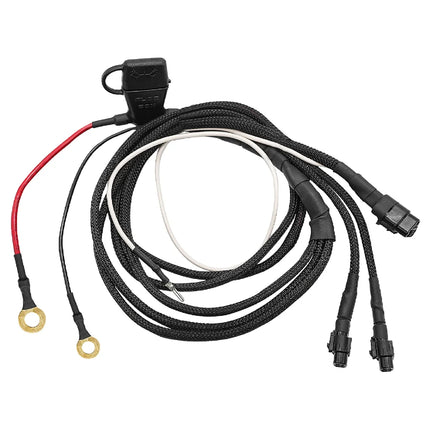

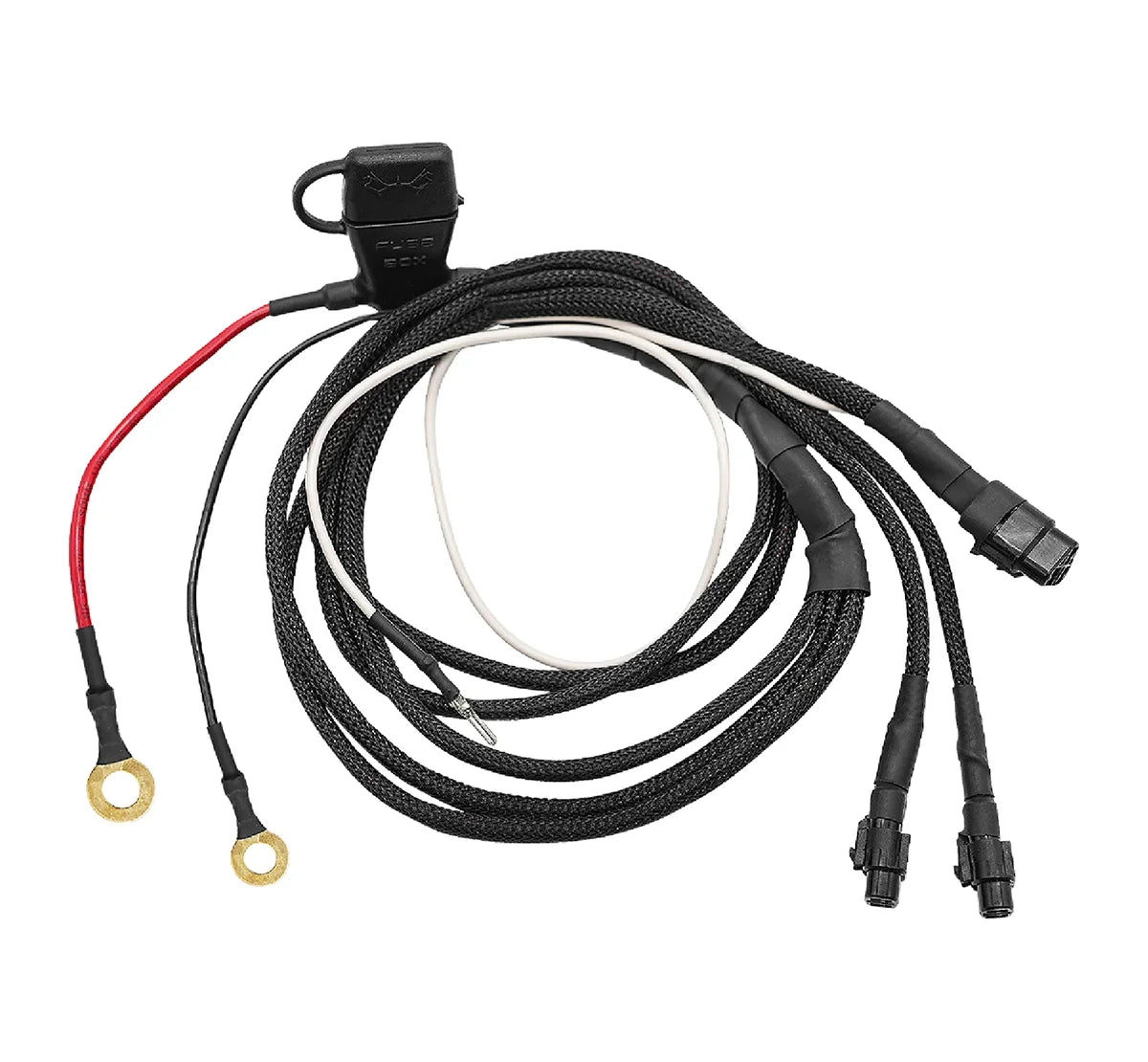

1 × Integrated Wire Harness Pro

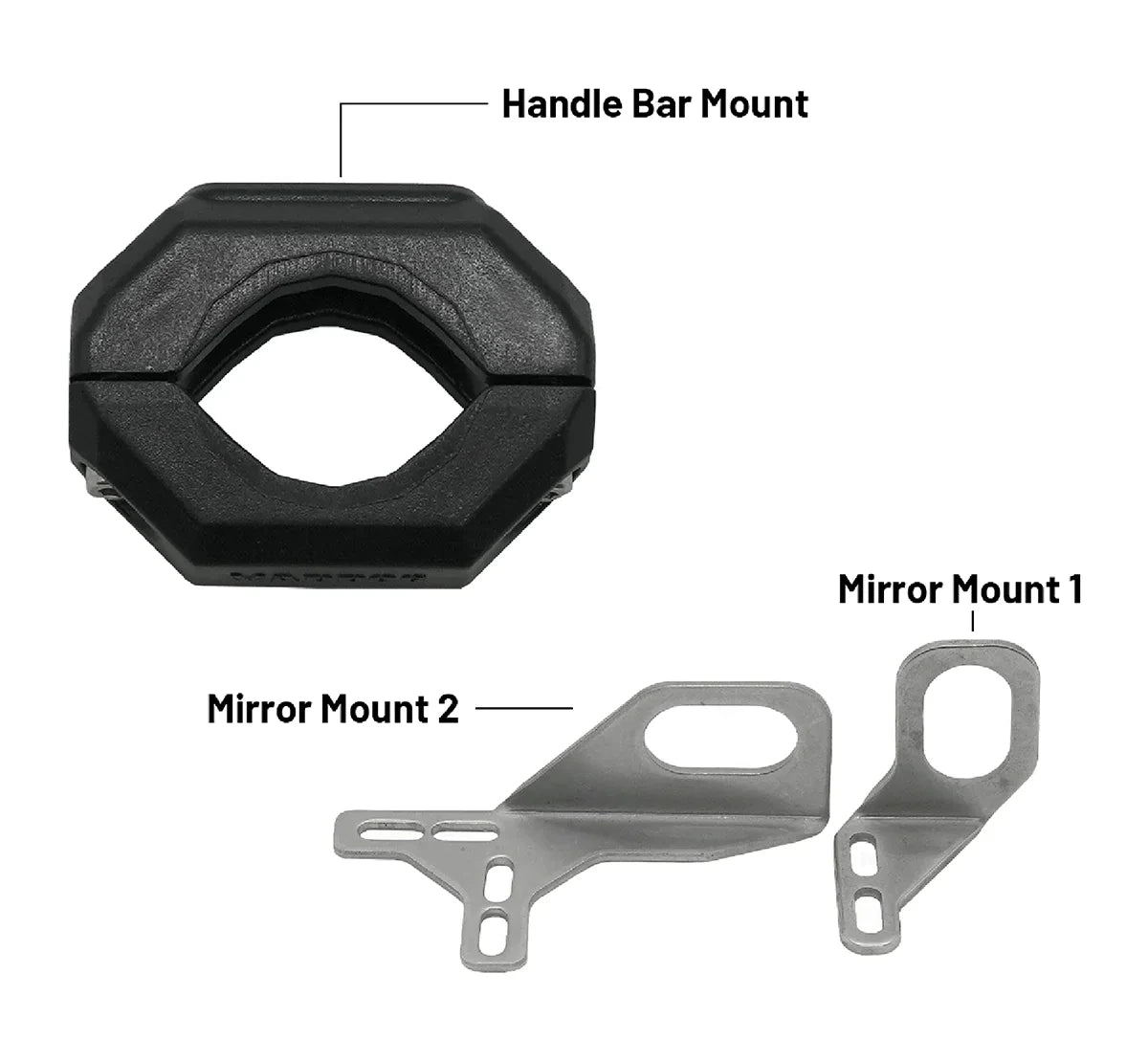

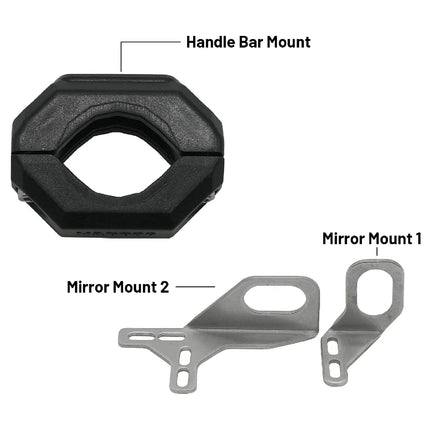

1 × Handlebar Clamp
2 × Mirror Mounting Clamps
1 × Warranty Card
1 × Screw Set
4 × Silicone Belts
Supplied as a complete integrated system.
Technical Specifications
Brand: Maddog
Model: Switch Pro with Wire Harness Pro
Functions: On/Off Control, Pass Function, Beacon Mode
Material: High-Grade Polycarbonate + Sealed Silicone
Water Resistance: IP67 Certified
Operating Voltage: 12V DC
Installation: Plug & Play (No Cutting Required)
Important Notes
Compatible only with included Wire Harness Pro.
Not compatible with older Maddog harnesses or aftermarket systems.
Professional installation recommended.
Beacon mode usage should comply with local regulations.
Ensure total auxiliary light load is within harness capacity.
Summary
The Maddog Switch Pro with Integrated Wire Harness Pro delivers consolidated auxiliary lighting control in a compact, IP67-rated system. With integrated power delivery, Pass functionality, Beacon mode, and plug-and-play architecture, it simplifies installation while maintaining electrical stability and durability.
Integrated control. Reduced clutter. Built for reliable auxiliary lighting performance.
