Maddog Dual Wire Harness Pro – Heavy-Duty Waterproof Auxiliary Light Wiring Kit (Up to 150W)

Maddog Dual Wire Harness Pro – 15A / 150W Dual Auxiliary Light Wiring Kit (12V Motorcycle)

15A / 150W Capacity | Pure Copper | IP68 Waterproof | 12V DC

---

Reliable Power Delivery for Dual Auxiliary Light Setups

The Maddog Dual Wire Harness Pro is engineered to provide a stable, safe, and high-capacity electrical connection for dual auxiliary light installations on motorcycles. Designed to handle up to 15 Amps or 150 Watts, this premium wiring system ensures efficient current flow while protecting the motorcycle’s electrical architecture.

Built for riders who install fog lamps, spotlights, or high-output LED auxiliary lights, the Dual Wire Harness Pro delivers controlled power distribution without voltage instability or unreliable connections.

This is a performance-grade wiring solution designed for serious auxiliary lighting systems.

---

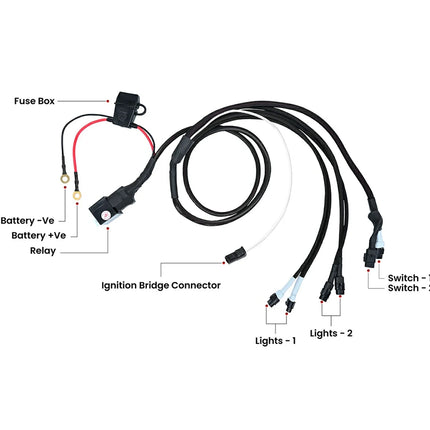

Dual Output Configuration

The harness is designed to power and control two auxiliary lights simultaneously.

Dual output capability supports:

Balanced power distribution
Clean electrical routing
Stable operation under load
Compatibility with dual-lamp setups up to 150W combined

This configuration ensures both lights receive consistent power without overloading the circuit.

Always ensure that total load does not exceed the specified 150W rating.

---

15 Amps / 150 Watts Load Capacity

The Maddog Dual Wire Harness Pro supports a maximum load of 15 Amps or 150 Watts at 12V DC.

This rating makes it suitable for:

High-output LED auxiliary lights
Dual fog light setups
Dual spotlight configurations
Adventure and touring light systems

Exceeding the rated capacity may lead to electrical stress. Load calculation is recommended before installation.

---

100% Pure Copper Wiring

The harness is constructed using 100% pure copper conductors.

Pure copper wiring provides:

Improved electrical conductivity
Reduced resistance
Lower voltage drop
Enhanced efficiency under load

This supports stable current delivery and minimizes heat buildup compared to lower-grade conductors.

---

Automotive-Grade Fire-Retardant Wiring

The harness incorporates 1.5 sq.mm, 2 sq.mm, and 2.5 sq.mm automotive-grade wiring.

Wire gauge selection supports:

High current flow stability
Load-bearing durability
Improved thermal resistance

Fire-retardant insulation enhances safety under continuous electrical load.

---

IP68 Waterproof Connectors

The Dual Wire Harness Pro features IP68-rated waterproof connectors.

IP68 rating indicates:

Protection against dust ingress
Resistance to water exposure under defined conditions

These sealed connectors support reliable operation during:

Heavy rain
Dusty trail riding
Mud exposure
Long-distance touring

Proper sealing is essential during installation to maintain waterproof performance.

---

Braided Mesh Protective Sleeve

The harness is protected with a braided mesh sleeve designed to improve durability and visual integration.

The braided sleeve provides:

Abrasion resistance
Heat protection
Improved cable management
OEM-like appearance

This layer enhances longevity when routed through engine bays or frame sections exposed to vibration and movement.

---

Plug-and-Play Installation

The Maddog Dual Wire Harness Pro is designed for simplified installation.

Installation advantages include:

No cutting required
No splicing required
Pre-configured connectors
Ignition bridge connector included

The plug-and-play design reduces installation errors and maintains electrical integrity.

Professional installation is recommended to ensure proper routing and fuse protection.

---

Compatibility

Compatible With:

Maddog Switch
Maddog Dual Switch Pro
Maddog Switch Pro systems

Not Compatible With:

Maddog Dimmer

Ensure compatibility before installation.

---

Universal Motorcycle Fitment

Designed for universal 12V motorcycle systems.

Suitable for:

Adventure motorcycles
Street motorcycles
Touring motorcycles
Dual-sport bikes

Proper mounting and routing depend on available frame space and battery access.

---

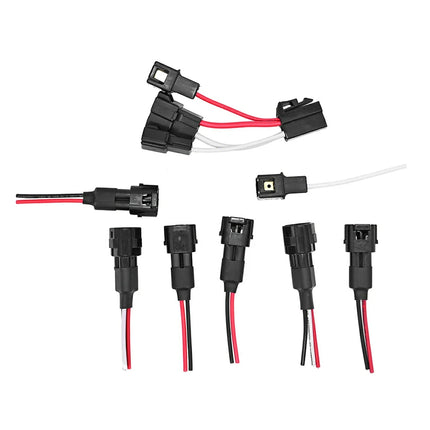

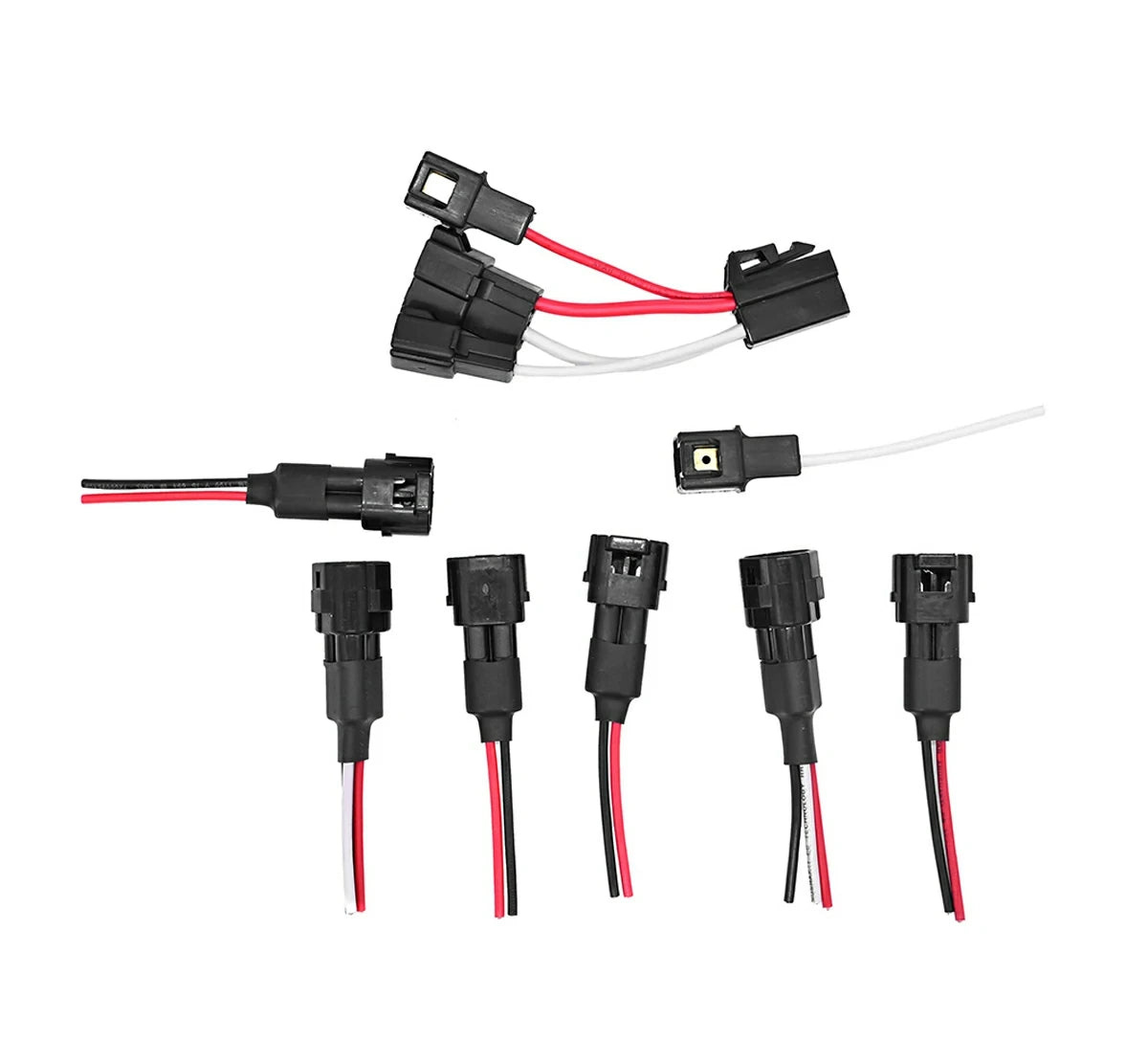

Kit Contents

1 × Maddog Dual Wire Harness Pro
2 × Tail Connectors

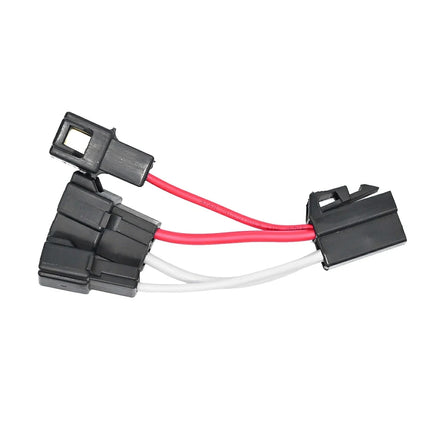

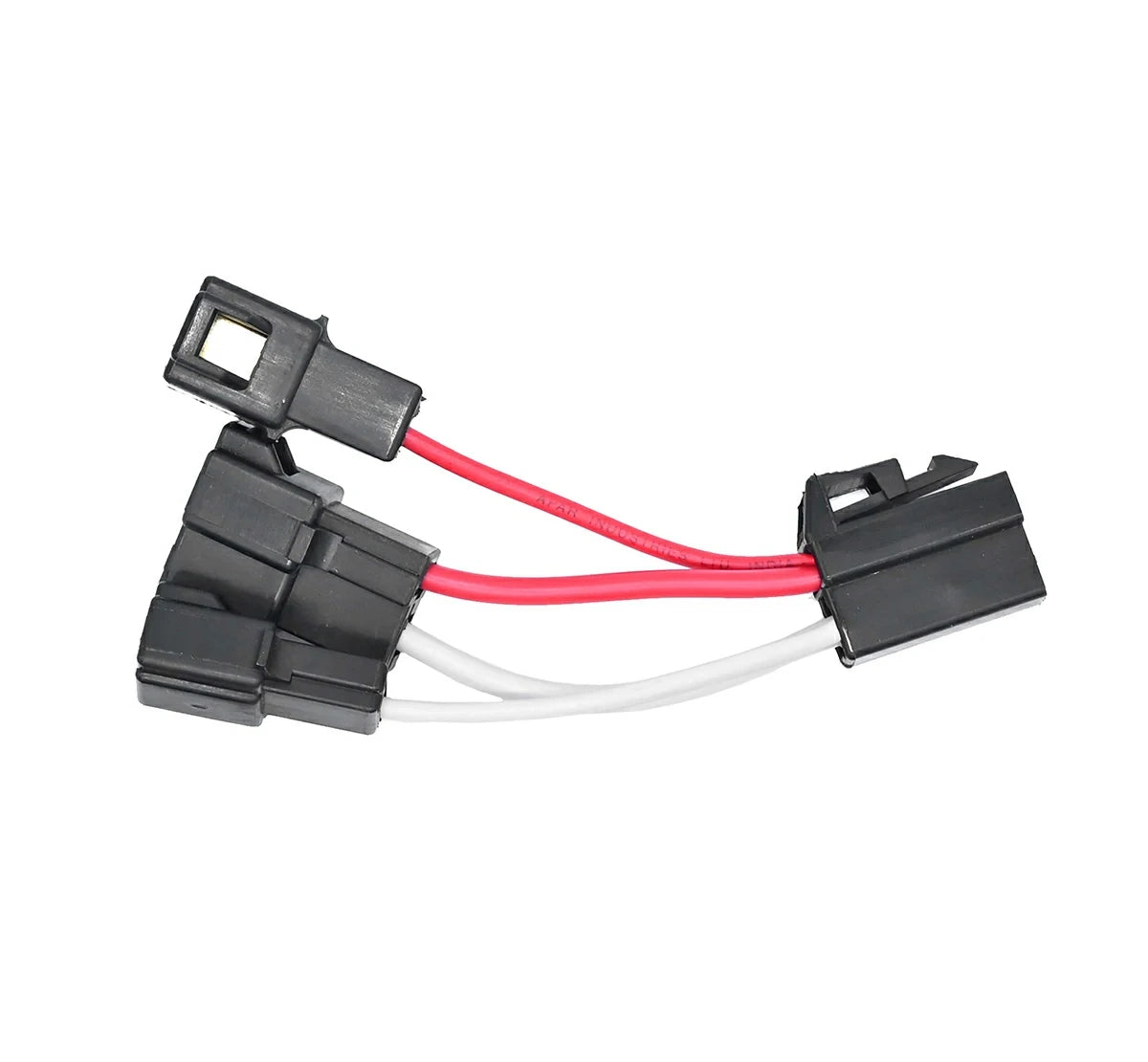

1 × Ignition Bridge Connector
1 × Set of Zip Tags

Supplied as a complete wiring kit for dual auxiliary light installations.

---

Technical Specifications

Brand: Maddog
Product Type: Dual Auxiliary Light Wiring Harness
Max Load: 15 Amps / 150 Watts
Voltage: 12V DC
Wire Material: 100% Pure Copper
Wire Gauge: 1.5 / 2 / 2.5 sq.mm Automotive-Grade
Protection: Braided Mesh Sleeve
Connectors: IP68 Waterproof
Usage: Dual Auxiliary Light Setup
Fitment: Universal Motorcycle Compatibility

---

Important Notes

Do not exceed 150W total load.
Ensure proper fuse protection during installation.
Confirm compatibility with lighting system before purchase.
Professional installation recommended for optimal electrical safety.

---

Summary

The Maddog Dual Wire Harness Pro is a high-capacity, automotive-grade wiring solution designed to safely power dual auxiliary lights up to 150W. Built with pure copper conductors, IP68 waterproof connectors, and braided mesh protection, it delivers stable current flow and long-term durability in demanding riding conditions.

Engineered for reliability. Built for safe auxiliary lighting integration.
