Maddog Dimmer – 4-Level Auxiliary Light Controller with Pass & Beacon Mode (12V Plug & Play)
4-Level Brightness Control | Pass Mode | Beacon Mode | 12V Plug & Play
Precision Light Control for Serious Auxiliary Setups
The Maddog Dimmer is engineered for riders who require adjustable auxiliary lighting output without compromising electrical stability or installation simplicity. Designed as a complete control solution, this unit allows real-time brightness adjustment across four output levels while integrating advanced signaling functions such as Pass and Beacon modes.
Unlike basic on/off switch systems, the Maddog Dimmer enables dynamic light intensity control based on riding conditions. Whether navigating dense fog, urban traffic, or open highways at night, this controller allows riders to fine-tune output for visibility and road awareness.
This is a dedicated lighting control system — not just a toggle switch.
Quad-Level Dimming Control
The Maddog Dimmer allows adjustment of auxiliary light output across four predefined levels:
100% – Maximum illumination
75% – High-output cruising mode
50% – Balanced mid-range output
25% – Low-intensity urban or low-visibility mode
This multi-level configuration allows riders to:
Reduce glare in city environments
Improve fog penetration in adverse weather
Adjust brightness to match traffic conditions
Extend auxiliary light lifespan through controlled usage
Brightness levels are electronically regulated to maintain stable current flow.
Integrated Pass Function
The Dimmer includes an integrated Pass functionality.
Pass mode allows:
Instant temporary full-brightness flash
Improved overtaking visibility
Quick signaling to surrounding traffic
This function enhances communication on highways and during overtaking scenarios without requiring separate switches.
Beacon Mode for Visibility Signaling
The Beacon Mode activates a controlled flashing light pattern.
Beacon functionality is designed for:
Emergency signaling
Low-visibility situations
Temporary roadside alerts
Usage of flashing patterns should comply with local traffic regulations.
All-In-One Control System

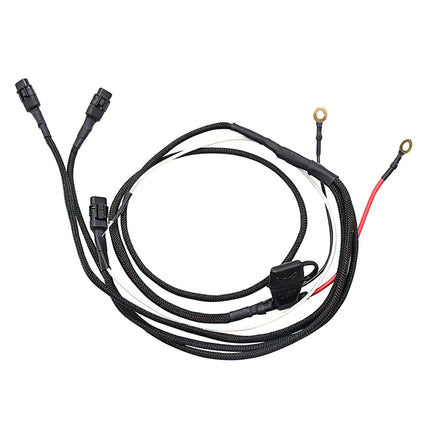

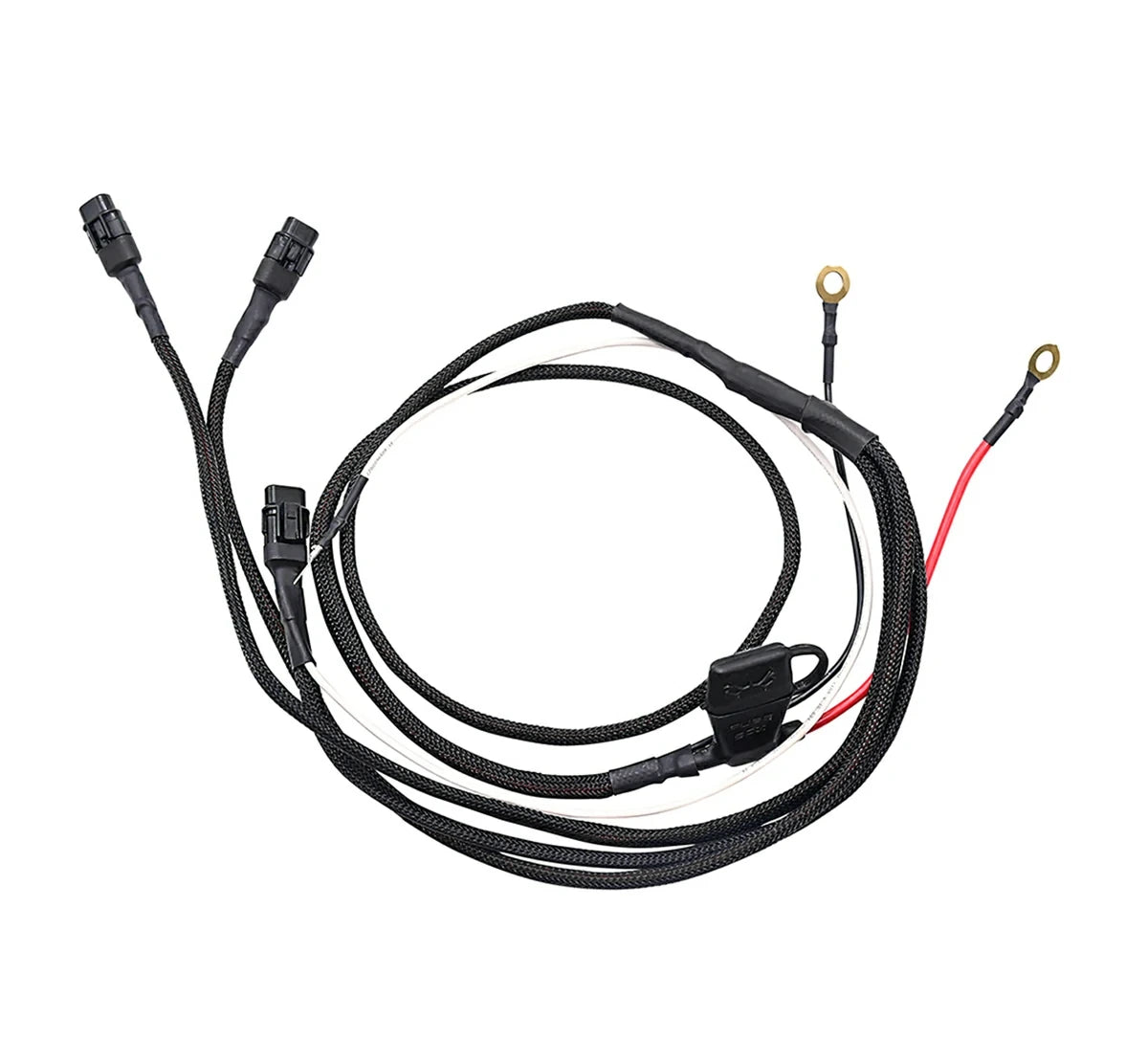

The Maddog Dimmer comes with its own dedicated wire harness.
Key advantages:
No additional Maddog Switch required
No Wire Harness Pro needed
Integrated plug-and-play architecture
Pre-configured connectors for simplified installation
This eliminates compatibility confusion and reduces the need for separate control units.
The Dimmer is designed to operate exclusively with the included harness.
Plug-and-Play Installation
Installation is engineered for direct connectivity.
Installation benefits include:
No wire cutting
No splicing
Pre-configured connectors
Dedicated harness compatibility
Professional installation is recommended to ensure proper routing, secure mounting, and correct load management.
Weather-Resistant Construction
The Dimmer housing and connectors are constructed using high-grade polycarbonate and weather-sealed components.
Durability features include:
Moisture resistance
Dust resistance
Vibration tolerance
Secure connector sealing
Designed for use across:
Rain riding
Off-road terrain
High-humidity conditions
Extended touring environments
The system operates on standard 12V DC motorcycle electrical platforms.

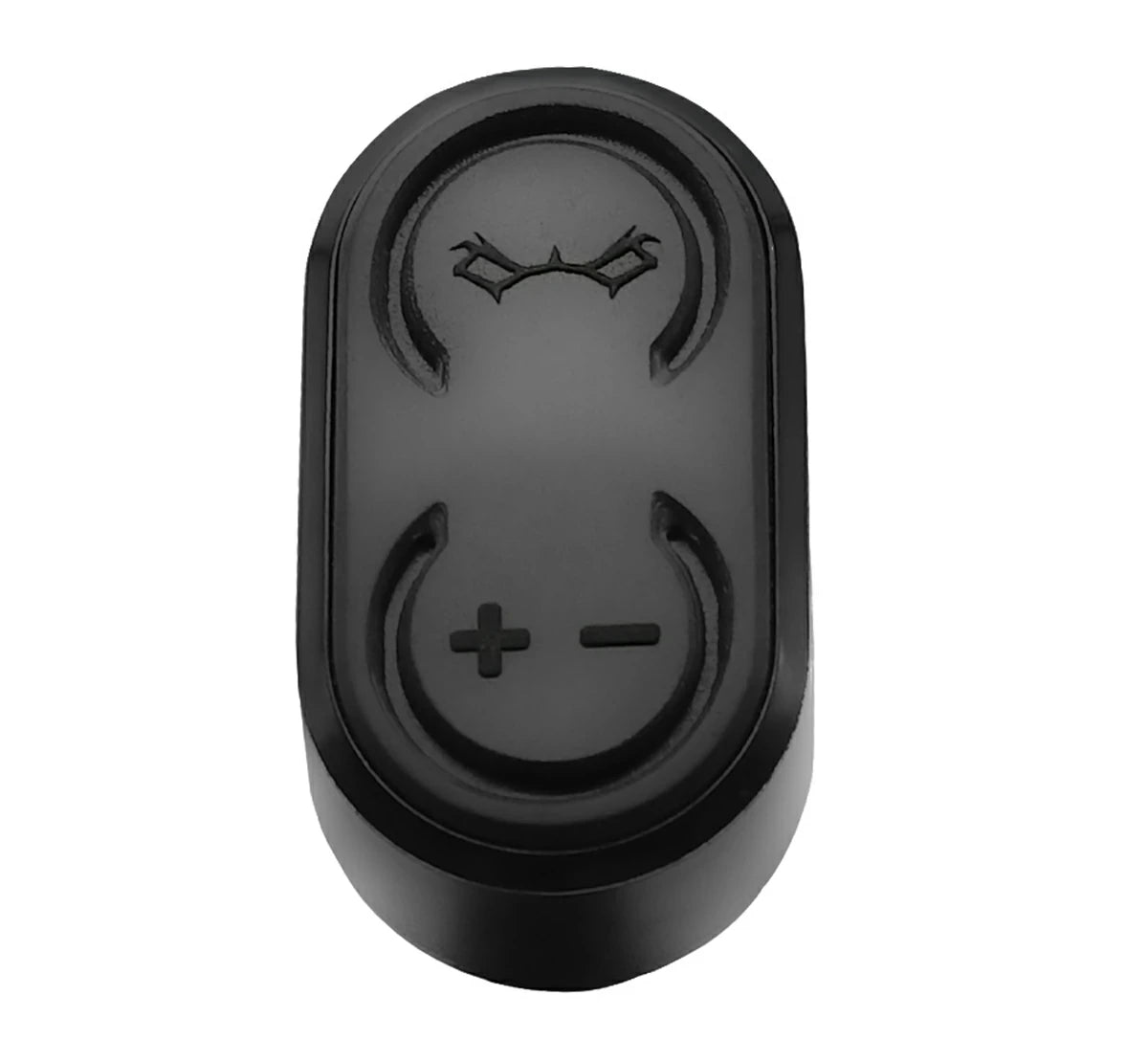

Compact & Handlebar-Friendly Design
The Dimmer is engineered for minimal cockpit intrusion.
Mounting benefits:
Compact footprint
Ergonomic handlebar positioning
Mirror mount compatibility
Clean OEM-style integration
It integrates without interfering with throttle or braking controls.
Compatibility
Compatible Only With:
Included Dedicated Maddog Dimmer Wire Harness
Not Compatible With:
Maddog Wire Harness
Maddog Wire Harness Pro
Maddog Dual Wire Harness Pro
Maddog Switch
Maddog Dual Switch Pro
Compatibility should be verified before purchase.
Ideal Applications
Fog light intensity control
Adventure touring setups
Highway auxiliary lighting
Urban brightness management
Emergency signaling support
The Dimmer is suited for riders who require adaptive auxiliary lighting performance rather than fixed-output systems.

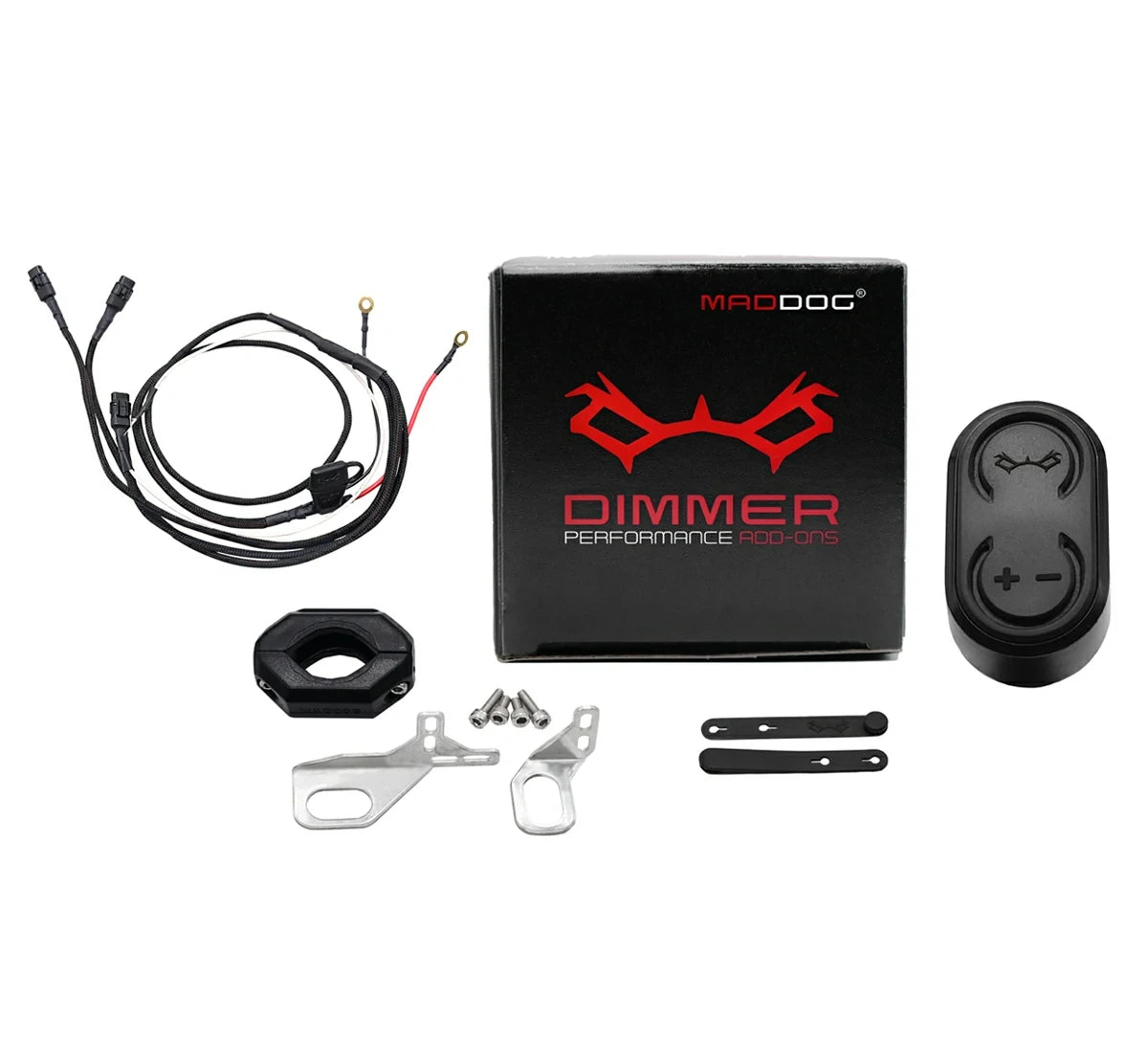

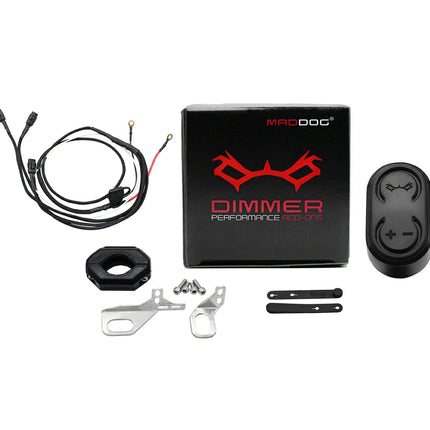

Kit Contents
1 × Maddog Dimmer Unit
1 × Dedicated Dimmer Wire Harness
1 × Warranty Card
1 × Screw Kit
2 × Tail Connectors

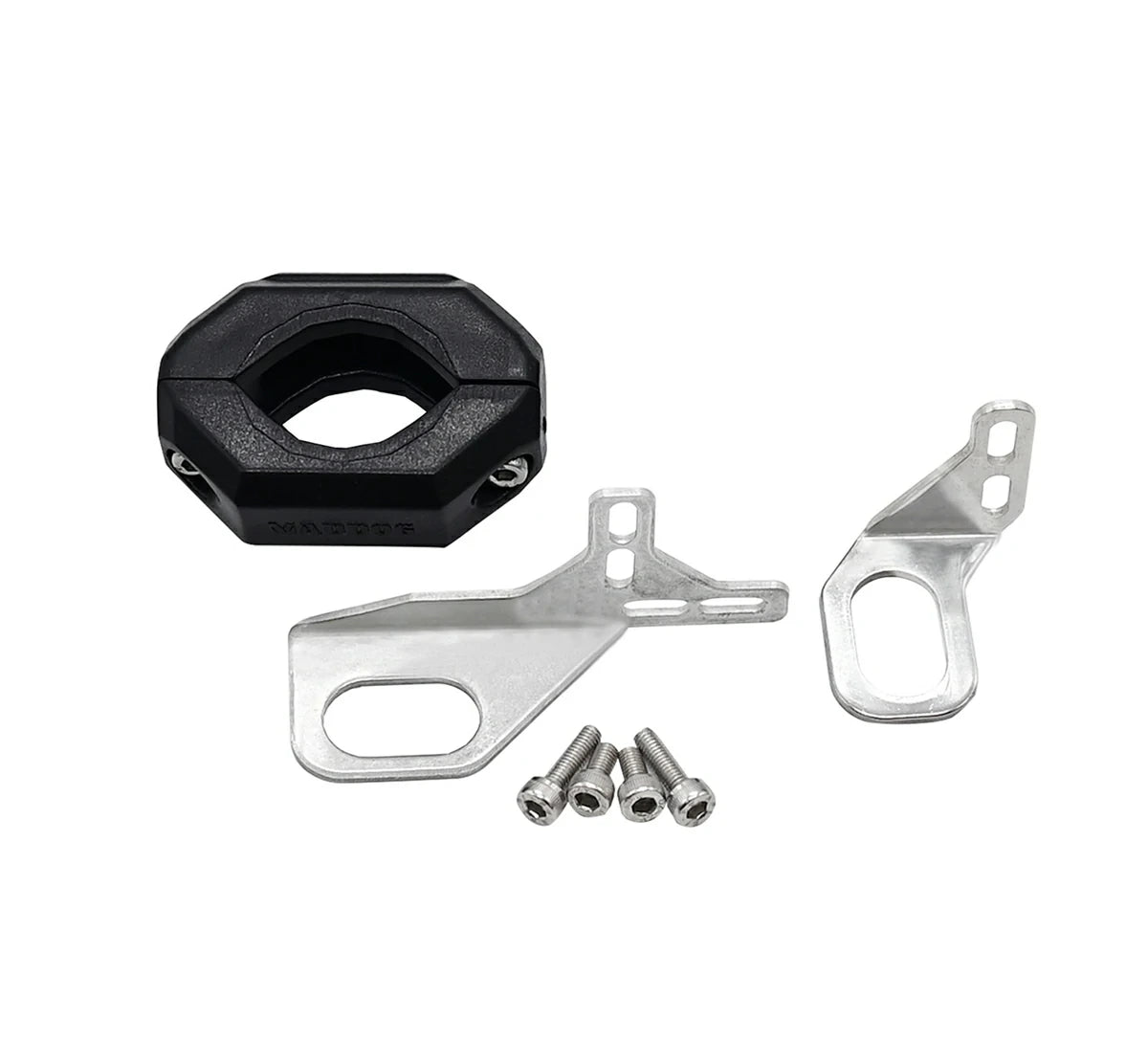

1 × Handlebar Clamp
2 × Mirror Mounts
Supplied as a complete dimmer control system.
Technical Specifications
Brand: Maddog
Model: Maddog Dimmer
Brightness Levels: 100%, 75%, 50%, 25%
Functions: Pass Mode, Beacon Mode
Material: High-Grade Polycarbonate
Connectors: Weather-Sealed
Voltage: 12V DC
Installation: Plug & Play (Dedicated Harness Included)
Important Notes
Compatible only with the included dedicated harness.
Not compatible with other Maddog harness systems.
Ensure total auxiliary light load remains within safe limits.
Professional installation recommended.
Beacon mode usage should comply with local regulations.
Summary
The Maddog Dimmer delivers structured brightness control, Pass flash capability, and Beacon signaling in a compact plug-and-play unit with its own dedicated harness. Designed for riders who demand adaptive auxiliary lighting performance, it provides controlled output across four intensity levels without requiring additional switches.
Adjustable output. Integrated signaling. Complete lighting control system.
