Description

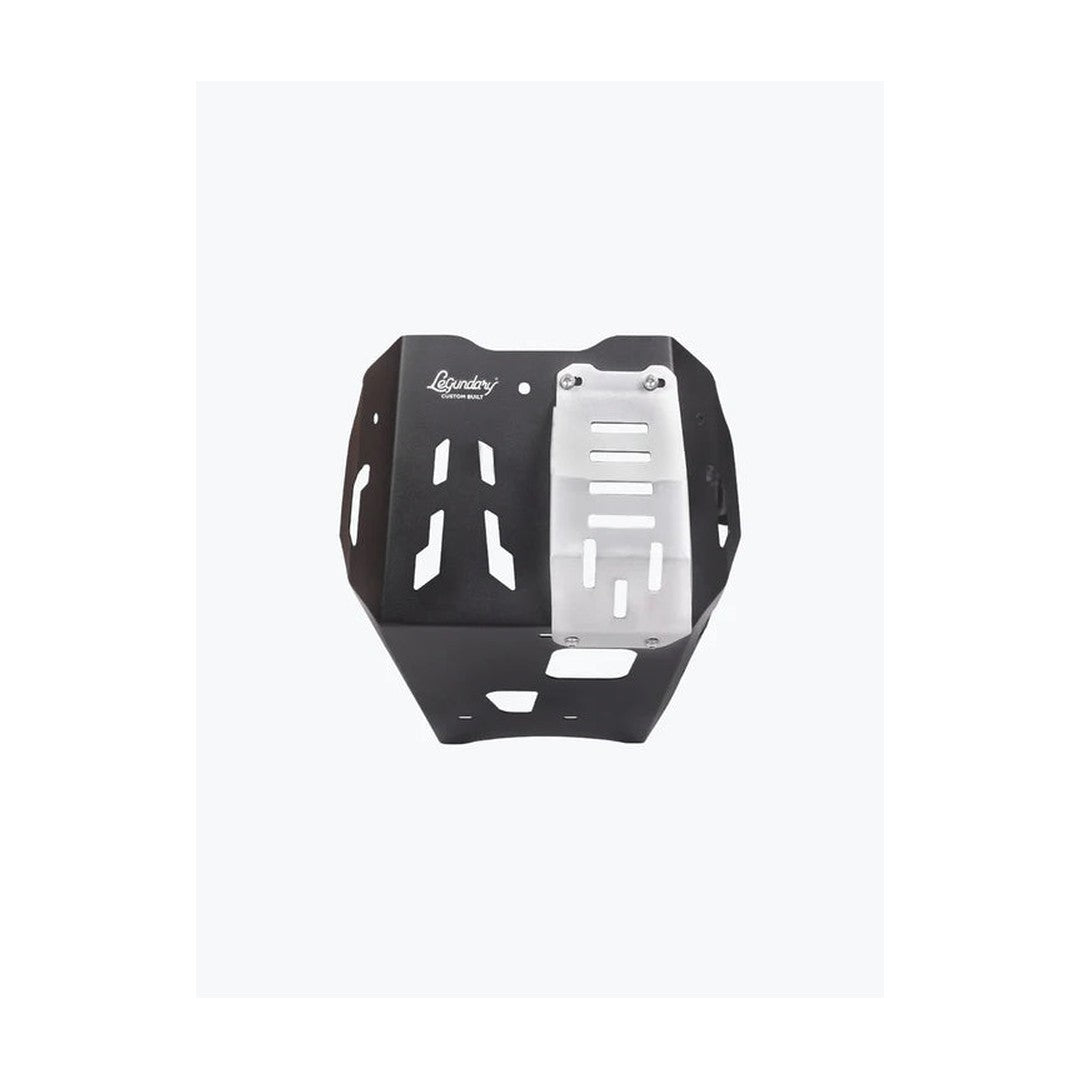

Heavy-Duty Engine & Underbody Bash Plate for KTM Adventure 390
The LCB Crater Bash Plate for KTM Adventure 390 is engineered for riders who push their machine beyond smooth highways and into real-world adventure terrain. Built to absorb impact before it reaches critical components, this dual-material bash plate shields the engine casing, exhaust routing, sump area, and lower frame rails from rocks, debris, and unexpected trail impacts.
Adventure motorcycles are designed to explore, but the stock underbody protection is often minimal. Loose stones, broken tarmac edges, hard landings, and gravel kickback can expose vulnerable mechanical parts. A single impact to the crankcase or exhaust header can result in costly repairs or a stranded ride. The Crater Bash Plate functions as structural insurance — distributing impact force and protecting what matters most.
Dual-Material Structural Engineering
The Crater Bash Plate uses a calculated combination of high-grade aluminum and reinforced mild steel.
-
Aluminum Layer: Lightweight, corrosion-resistant, and capable of dispersing impact energy across a wider surface.
-
Mild Steel Reinforcement: Adds rigidity in high-stress mounting zones and structural anchor points.
This hybrid construction balances durability and weight management. Heavy enough to protect. Light enough to avoid compromising handling or front-end balance.
Adventure motorcycles demand weight efficiency. Excess weight at the lower frame affects maneuverability during technical riding. The Crater Bash Plate maintains protective strength without creating unnecessary bulk.
Impact Absorption & Load Distribution
When a bash plate takes a hit, the real function is not just to block impact — it must distribute force correctly. Poorly designed plates concentrate force into mounting bolts or frame tabs.
The Crater design supports:
-
Even force distribution across mounting points
-
Reinforced load-bearing zones
-
Stable fitment under vibration
-
Reduced risk of stress fractures
Whether you’re riding rocky climbs, descending uneven trails, or crossing debris-strewn highways, the structure remains stable under repeated shock loads.
Intelligent Ventilation & Cooling Flow
Protection cannot come at the cost of overheating. Some solid bash plates restrict airflow and trap heat near the engine and exhaust system.
The Crater Bash Plate incorporates controlled venting zones that:
-
Maintain airflow toward engine surfaces
-
Allow heat dissipation around exhaust routing
-
Reduce heat buildup during slow off-road riding
-
Support stable engine operating temperature
This balance ensures protection without compromising mechanical efficiency.
Corrosion Resistance & Surface Treatment
Adventure riding exposes underbody components to:
-
Mud
-
Water crossings
-
Road salt
-
Dust accumulation
-
Heat cycling
The smooth surface treatment enhances durability and reduces dirt adhesion. Combined with corrosion-resistant finishing, the plate maintains structural integrity and appearance over long-term use.
It is built to handle rain, humidity, dust, and thermal stress without premature surface degradation.
Precision Fitment for KTM Adventure 390
This bash plate is designed specifically for the KTM Adventure 390 chassis. It aligns with factory mounting locations to ensure:
-
Correct geometry
-
Secure load-bearing fitment
-
No interference with exhaust routing
-
Proper ground clearance retention
Installation is direct bolt-on.
No cutting.
No drilling.
No structural modification.
Once mounted, it integrates cleanly with the ADV390’s aggressive design language, reinforcing its off-road capability visually and functionally.
Real-World Use Case
If you ride your KTM Adventure 390 purely in urban traffic, this is a protective upgrade.
If you ride it on broken roads, gravel stretches, or long-distance tours, this becomes essential equipment.
Underbody protection increases confidence. Confidence changes riding behavior. Riders push less cautiously when they know critical components are shielded.
This is not decorative armor. It is mechanical risk mitigation.
Key Features
-
Designed specifically for KTM Adventure 390
-
Dual-material construction: high-grade aluminum + mild steel
-
Maximum underbody protection for engine, exhaust, and lower frame
-
Reinforced load-bearing mounting structure
-
Corrosion-resistant surface treatment
-
Engineered airflow vents for cooling efficiency
-
Direct bolt-on installation — no modification required
-
Dual-tone finish for premium adventure styling
Construction Overview
Material: High-grade aluminum with mild steel reinforcement
Finish: Corrosion-resistant smooth surface treatment
Fitment: KTM Adventure 390
Installation: Direct bolt-on
Application: Engine and underbody protection
Why This Upgrade Matters
Adventure motorcycles are exposed machines. The sump, exhaust headers, and frame rails sit directly in impact zones. A properly engineered bash plate reduces repair risk, protects structural integrity, and increases long-term reliability.
The LCB Crater Bash Plate strengthens the KTM Adventure 390’s defensive architecture without affecting ride dynamics.
Warranty
This product comes with a 6-month manufacturer warranty from Legundary Custom Builds against manufacturing defects. RawTorque does not provide additional warranty coverage beyond the manufacturer’s policy. For complete details, refer to your Warranty Policy.
