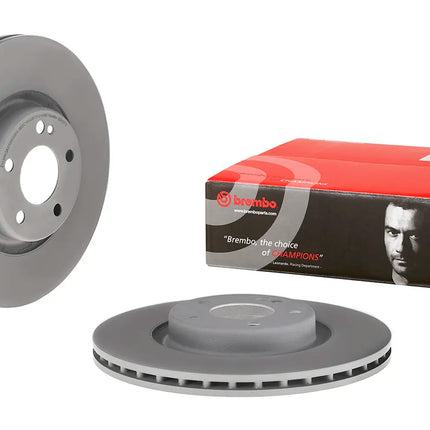

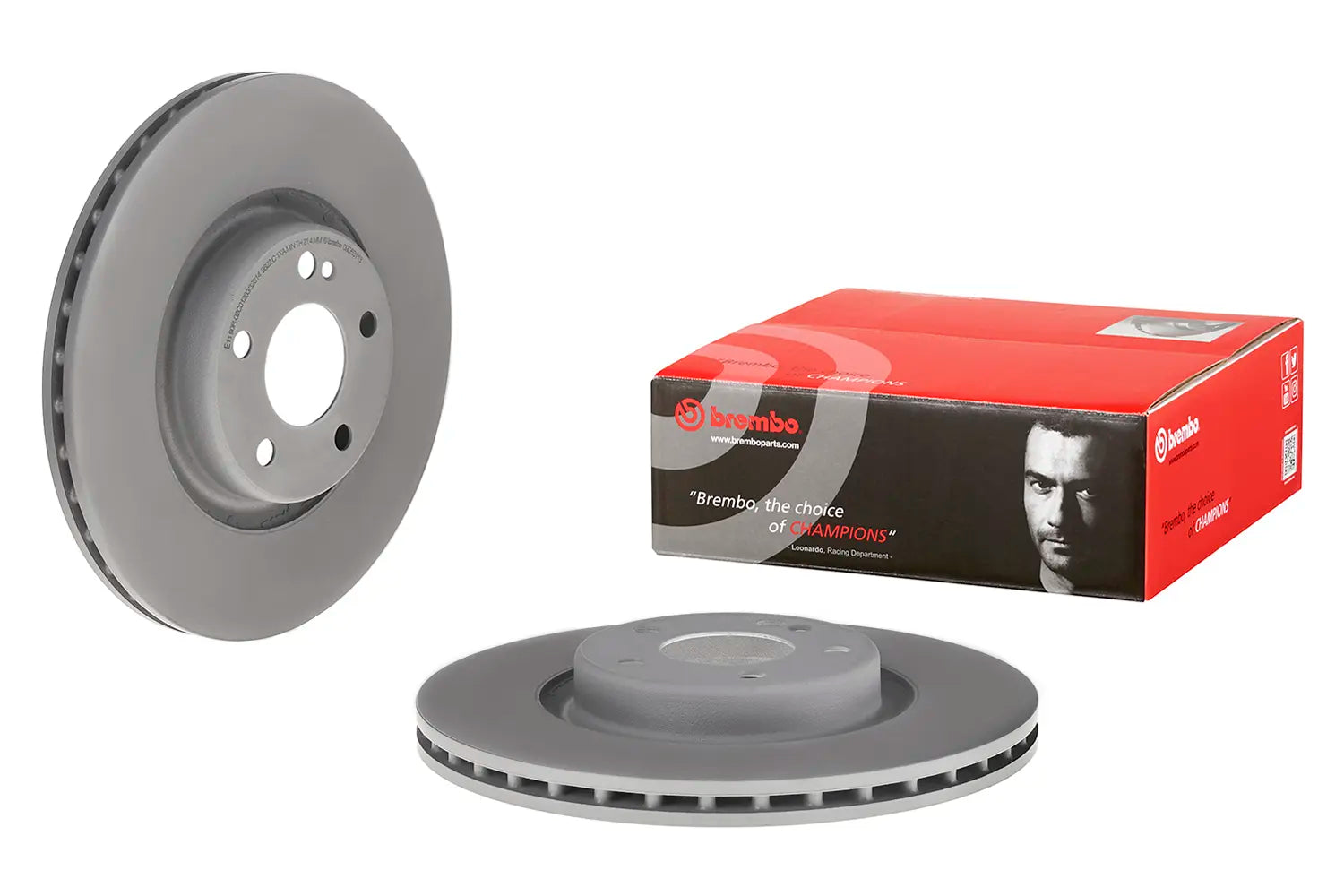

Brembo 09D53113 is a rear-axle brake disc for the Mercedes-AMG C43 W205, GLC 43 & Mercedes E-Class W213 E350d, E-Class W213 E350d Sports pack, GLC 220d, measuring 320 mm diameter and 24 mm thick.
Brembo Prime is the OE-equivalent disc line, developed for road use and finished with a corrosion coating.

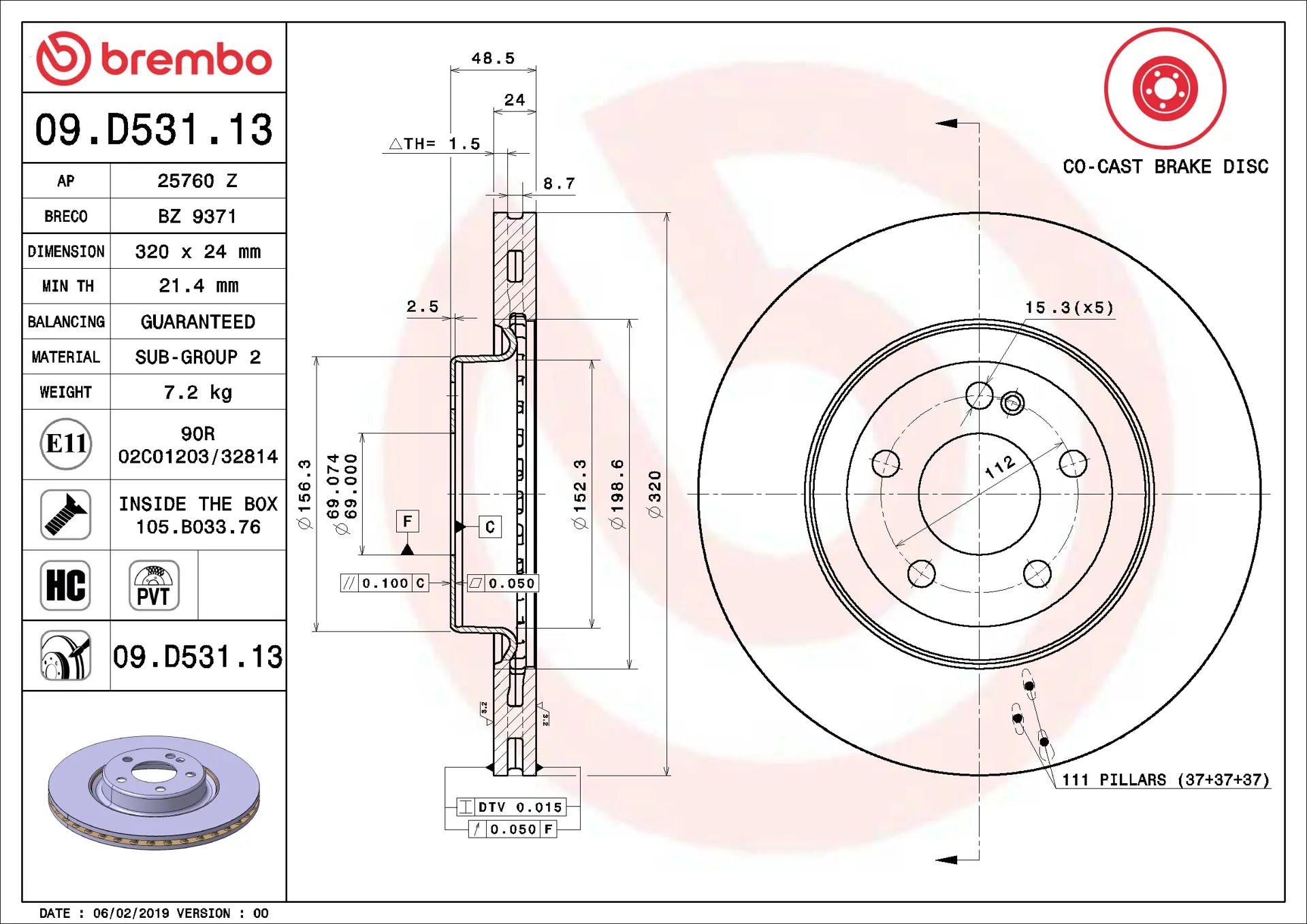

Specification
| Diameter |
320 mm |
| Thickness |
24 mm |
| Minimum thickness |
21.4 mm |
| Height |
49 mm |
| Bolt holes |
5 |
| Centering bore |
69 mm |
| Disc type |
Ventilated |
| Axle |
Rear |
| Units per box |
2 (left + right) |
| EAN code |
8020584233733 |
New thickness is 24 mm and the manufacturer's minimum is 21.4 mm. Measure at the thinnest point across the braking surface; once a disc reaches minimum thickness it must be replaced rather than resurfaced.
Fitment guidance
Listed against the Mercedes-AMG C43 W205, GLC 43 & Mercedes E-Class W213 E350d, E-Class W213 E350d Sports pack, GLC 220d. Brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.
This listing covers the rear axle. Brembo supplies this disc as a boxed set of two, so one unit does both wheels on the axle. You do not need to order two.
Specifications published by Brembo.
