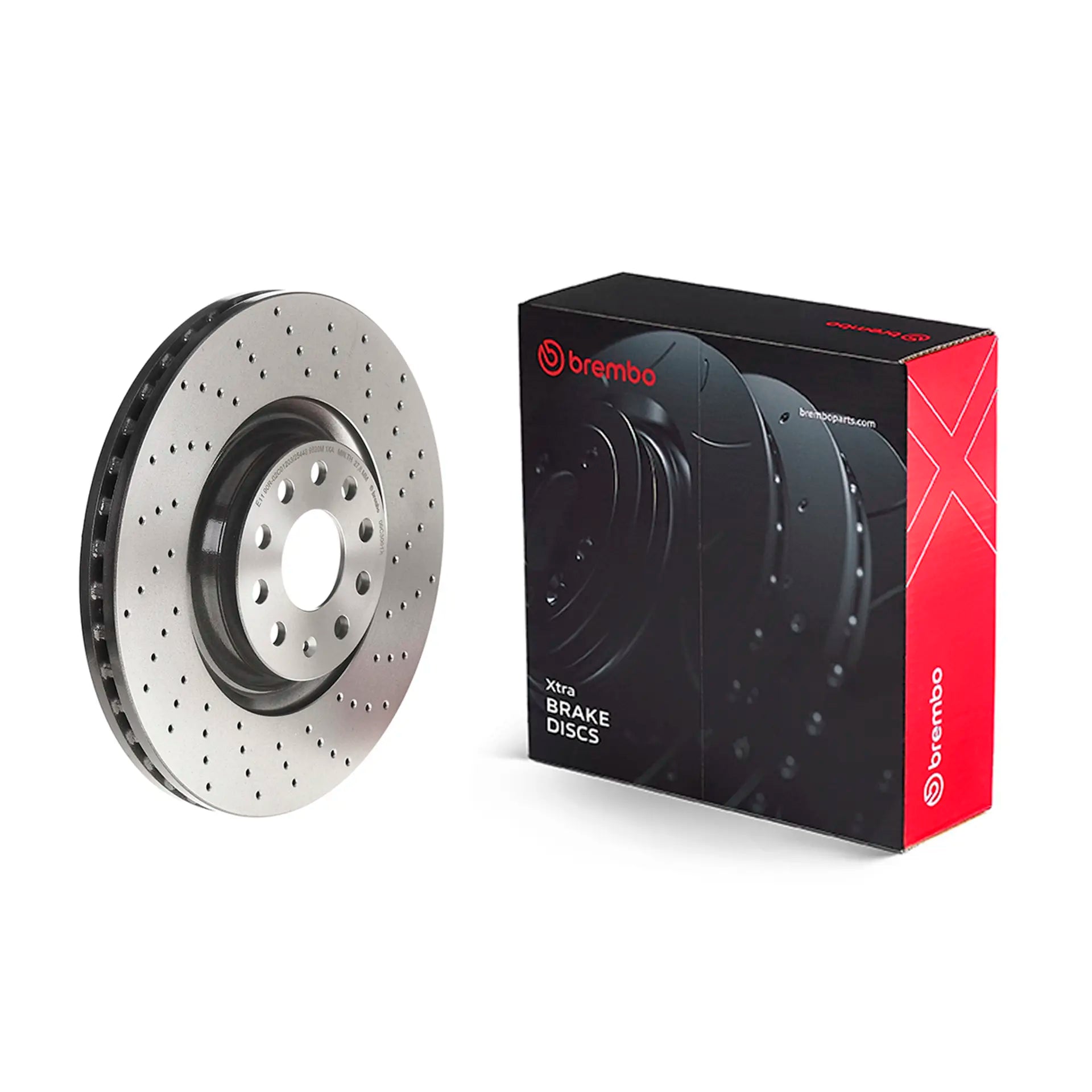

Brembo 09C3061X (front, 340 mm) and Brembo 09A2001X (rear, 310 mm) are the Xtra-line drilled brake discs for the Audi Q3 F3 and the Skoda Octavia vRS 230/245.
Use the Position selector to choose the axle you need. The Set option covers both axles together.
Brembo Xtra is Brembo's sport disc line. The braking surface is cross-drilled to clear heat, gas and water faster and give a sharper bite, and it is designed to run with Brembo Xtra pads.

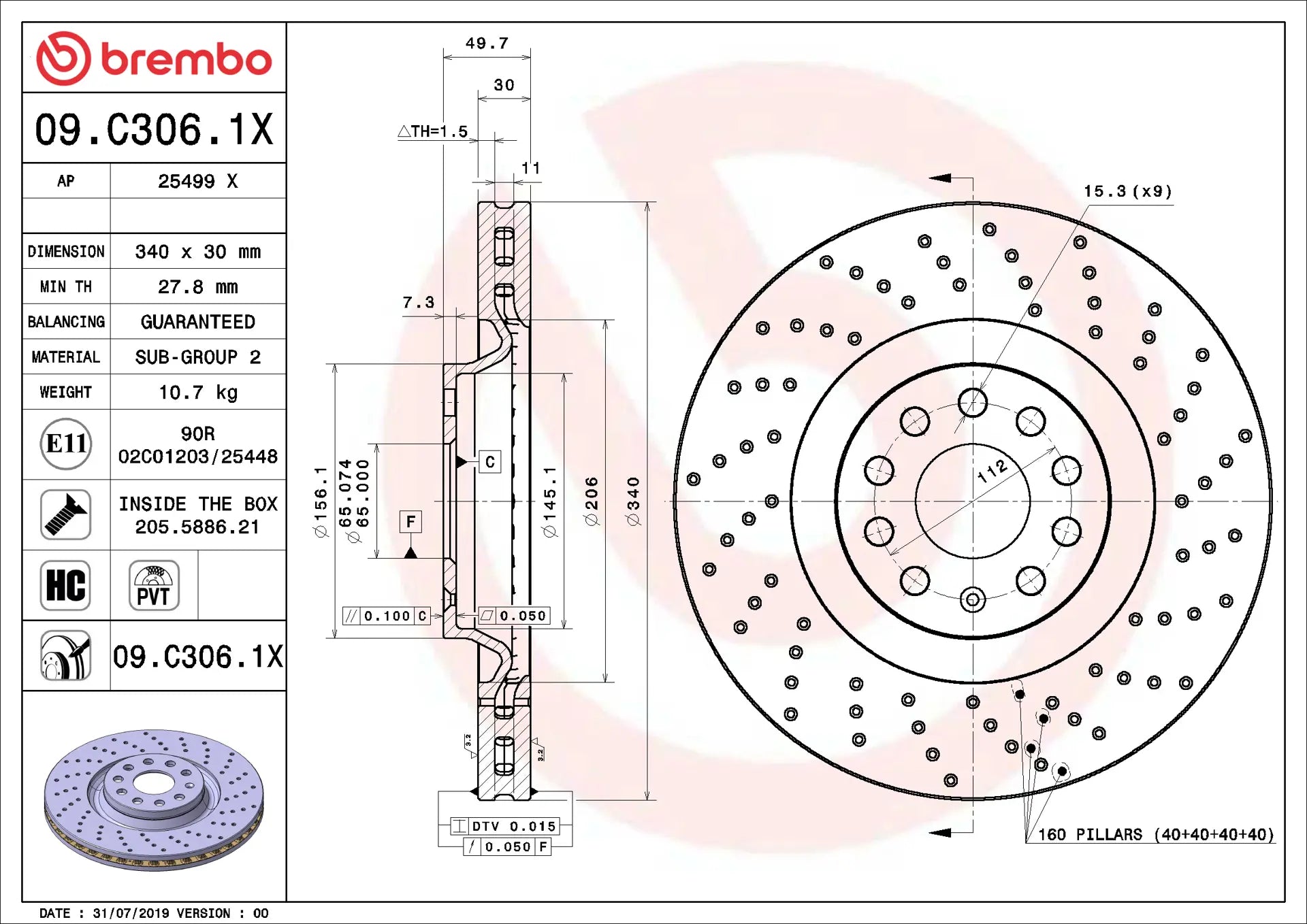

Front axle specification, 09C3061X
| Diameter |
340 mm |
| Thickness |
30 mm |
| Minimum thickness |
27.8 mm |
| Height |
50 mm |
| Bolt holes |
9 |
| Centering bore |
65 mm |
| Disc type |
Ventilated |
| Supplied as |
Set of 2 (one front axle) |
| EAN code |
8020584237922 |
| Units per box |
2 (left + right) |
Rear axle specification, 09A2001X
| Diameter |
310 mm |
| Thickness |
22 mm |
| Minimum thickness |
20.5 mm |
| Height |
48 mm |
| Bolt holes |
5 |
| Centering bore |
65 mm |
| Disc type |
Ventilated |
| EAN code |
8020584217733 |
| Units per box |
2 (left + right) |
Measure at the thinnest point across the braking surface: front is 30 mm new against a 27.8 mm minimum, rear is 22 mm new against a 20.5 mm minimum. Once a disc reaches minimum thickness it must be replaced rather than resurfaced.
Fitment guidance
Audi Q3 F3: the 340 mm front disc fits cars with PR code 1LA or 1LB. The Q3 was also built with a 312 mm and a 310 mm front disc, which are different parts. Your PR code is printed on the vehicle data sticker and in the warranty entitlement page of your service book. Send us a photo of that code block and we will confirm the right disc before you order.
Skoda Octavia vRS: listed against the 230 and 245 petrol models.
Front and rear use different part numbers, and brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.
The front option is supplied as a set of two discs, so one order does both front wheels. For the rear option, ask us to confirm the pack quantity before you order.
Specifications published by Brembo.
