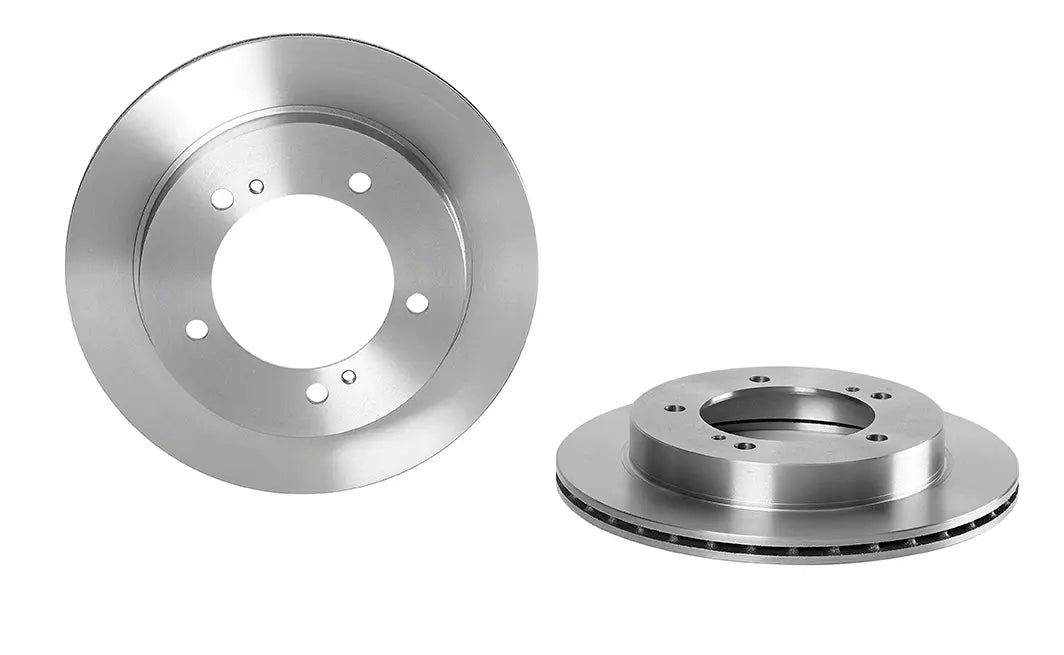

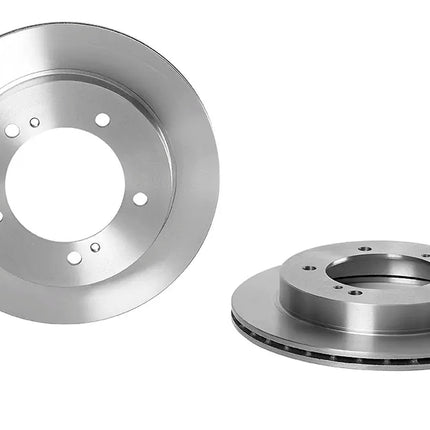

Brembo 09C22010 is a front-axle brake disc for the Maruti Jimny (new model), measuring 287 mm diameter and 17 mm thick.
Brembo Prime is the OE-equivalent disc line, developed for road use and finished with a corrosion coating.

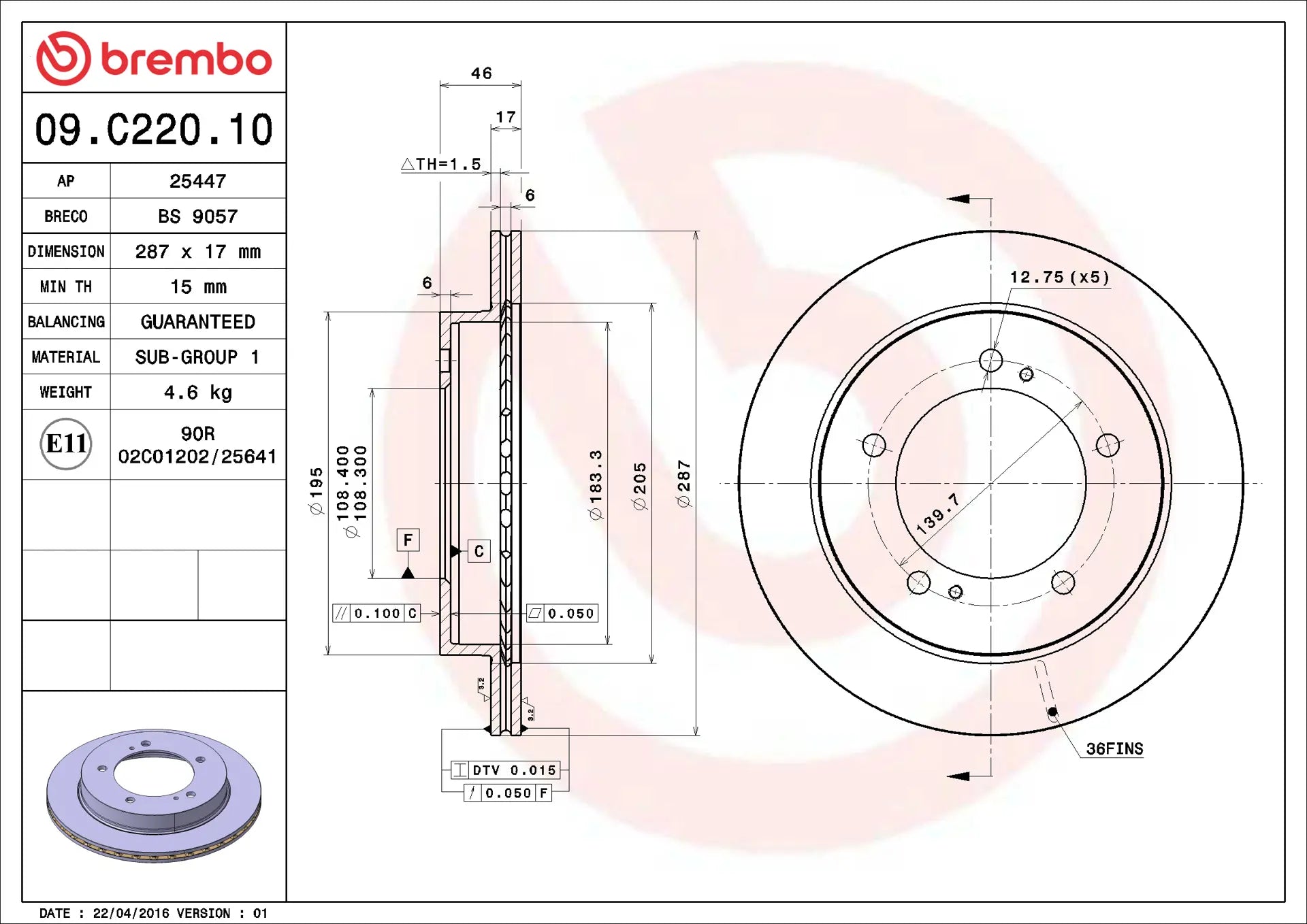

Specification
| Diameter |
287 mm |
| Thickness |
17 mm |
| Minimum thickness |
15 mm |
| Height |
46 mm |
| Bolt holes |
5 |
| Centering bore |
108 mm |
| Disc type |
Ventilated |
| Axle |
Front |
| Units per box |
2 (left + right) |
| EAN code |
8020584216842 |
New thickness is 17 mm and the manufacturer's minimum is 15 mm. Measure at the thinnest point across the braking surface; once a disc reaches minimum thickness it must be replaced rather than resurfaced.
Fitment guidance
Listed against the Maruti Jimny (new model). Brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.
This listing covers the front axle. Brembo supplies this disc as a boxed set of two, so one unit does both wheels on the axle. You do not need to order two.
Specifications published by Brembo.
