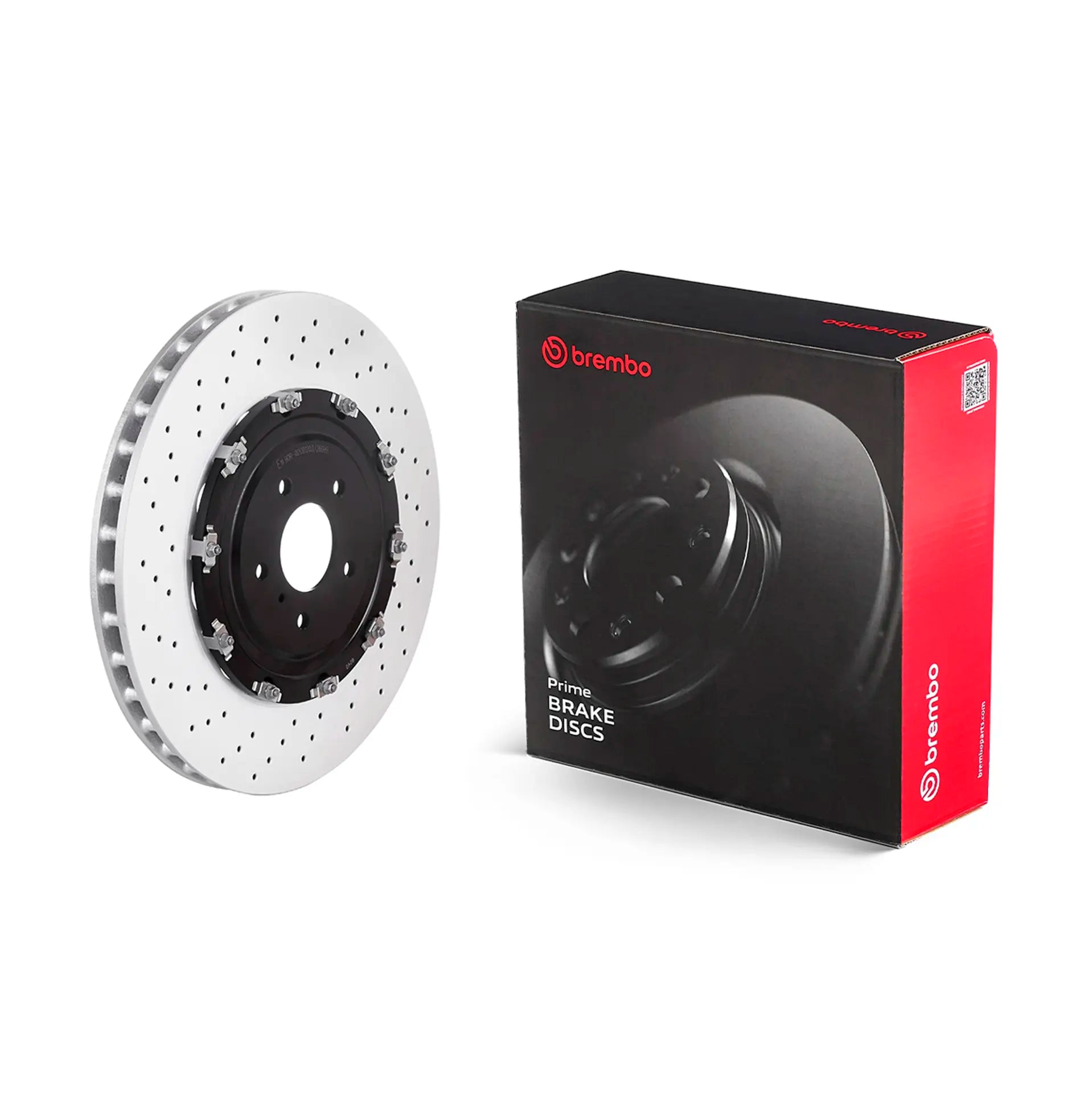

Brembo 09B38613 (front, 390 mm diameter) and Brembo 09A19013 (rear, 380 mm diameter) are the OE-specification brake discs for the Nissan GT-R (390 mm). The Set option covers both axles together.
Brembo Prime is the OE-equivalent disc line, developed for road use and finished with a corrosion coating.

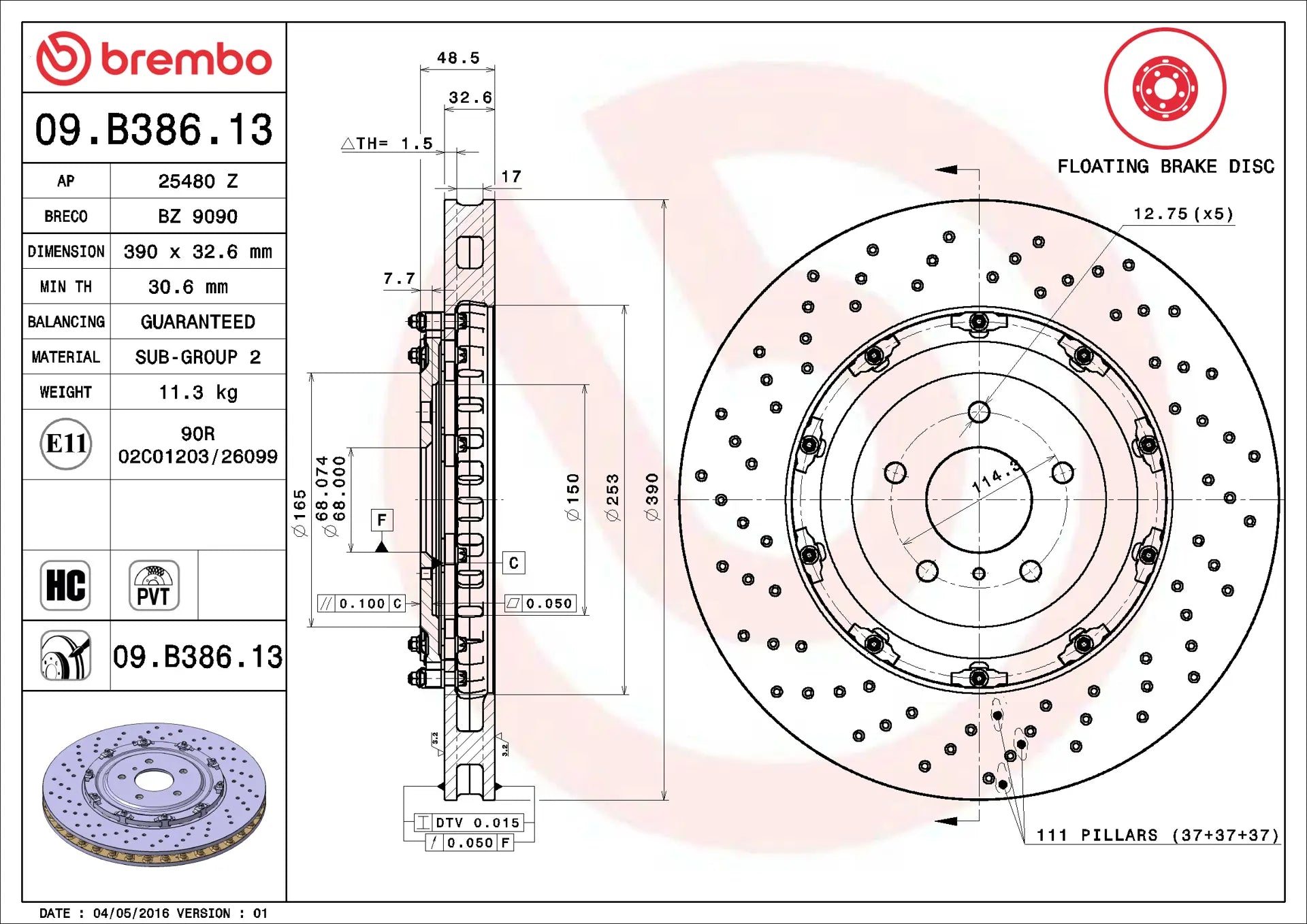

Front axle specification, 09B38613
| Diameter |
390 mm |
| Thickness |
32.6 mm |
| Minimum thickness |
30.6 mm |
| Height |
49 mm |
| Bolt holes |
5 |
| Centering bore |
68 mm |
| Disc type |
Ventilated |
| Units per box |
2 (left + right) |
| EAN code |
8020584039205 |
Rear axle specification, 09A19013
| Diameter |
380 mm |
| Thickness |
30 mm |
| Minimum thickness |
28 mm |
| Height |
62 mm |
| Bolt holes |
5 |
| Centering bore |
68 mm |
| Disc type |
Ventilated |
| Units per box |
2 (left + right) |
| EAN code |
8020584039151 |
Measure at the thinnest point across the braking surface: front is 32.6 mm new against a 30.6 mm minimum, rear is 30 mm new against a 28 mm minimum. Once a disc reaches minimum thickness it must be replaced rather than resurfaced.
Fitment guidance
Listed against the Nissan GT-R (390 mm). Front and rear use different part numbers, and brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.
Each Position option covers a single axle. Brembo supplies this disc as a boxed set of two, so one unit does both wheels on the axle. You do not need to order two.
Specifications published by Brembo.
