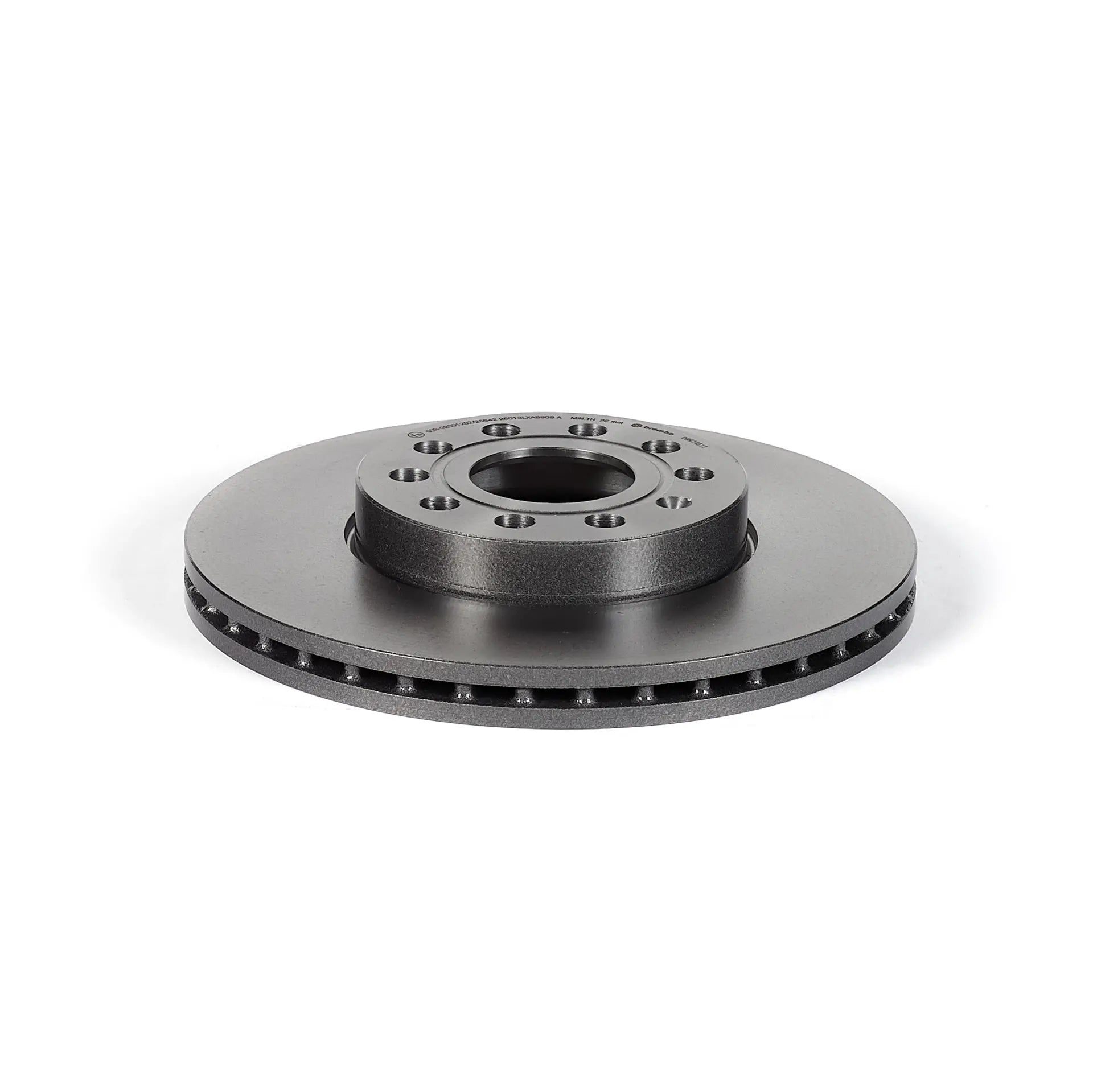

Brembo 09914511 is a front-axle brake disc for the Skoda Laura, Superb 3T, Yeti 4x4 & VW Beetle 5C1, Jetta, Passat B6, Passat B7, measuring 288 mm diameter and 25 mm thick.
Brembo Prime is the OE-equivalent disc line, developed for road use and finished with a corrosion coating.
Specification
| Diameter |
288 mm |
| Thickness |
25 mm |
| Minimum thickness |
22 mm |
| Height |
50 mm |
| Bolt holes |
5 |
| Centering bore |
65 mm |
| Disc type |
Ventilated |
| Axle |
Front |
| Units per box |
2 (left + right) |
| EAN code |
8020584024287 |
New thickness is 25 mm and the manufacturer's minimum is 22 mm. Measure at the thinnest point across the braking surface; once a disc reaches minimum thickness it must be replaced rather than resurfaced.
Fitment guidance
Listed against the Skoda Laura, Superb 3T, Yeti 4x4 & VW Beetle 5C1, Jetta, Passat B6, Passat B7. Brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.

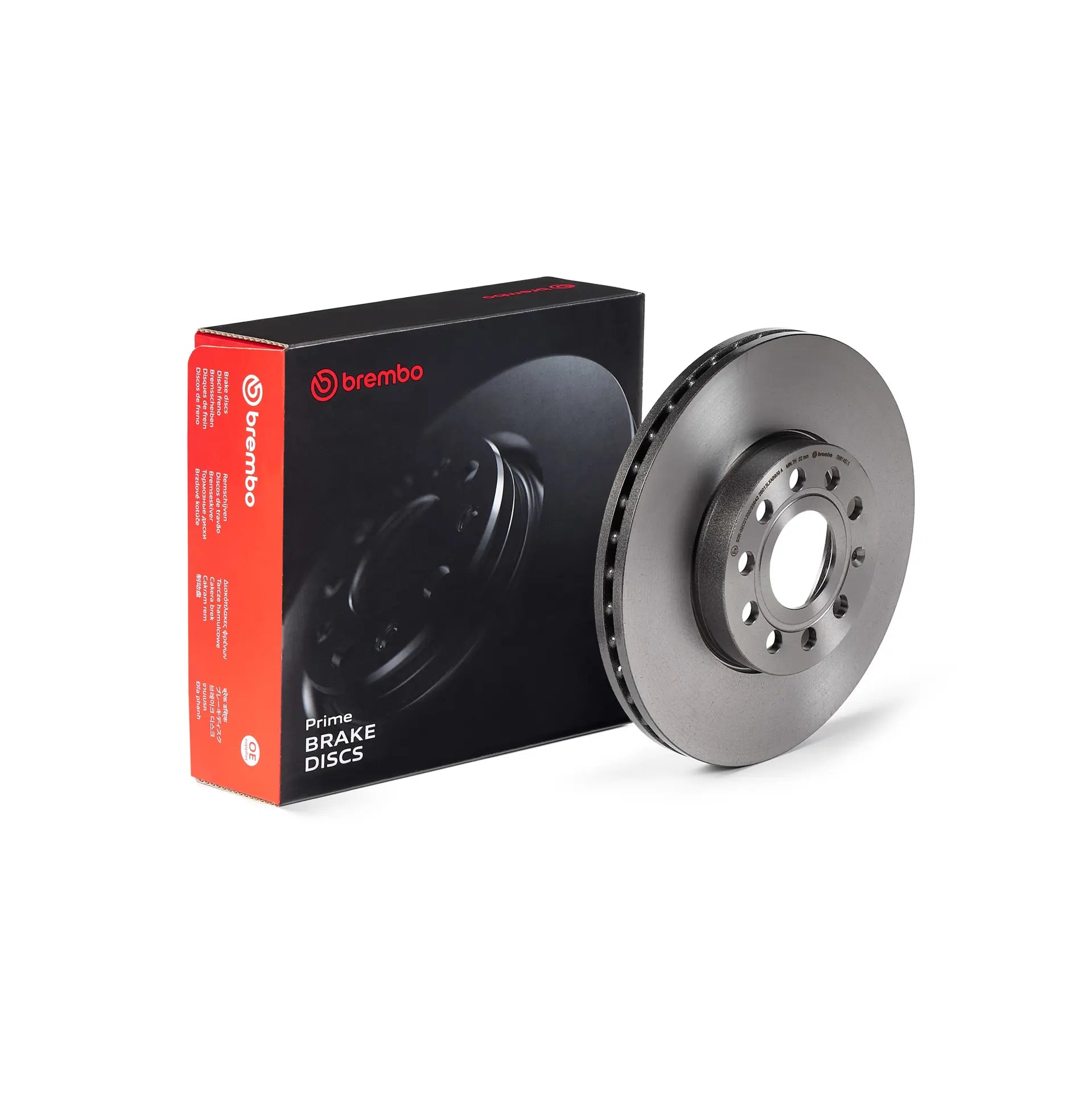

This listing covers the front axle. Brembo supplies this disc as a boxed set of two, so one unit does both wheels on the axle. You do not need to order two.
Specifications published by Brembo.
