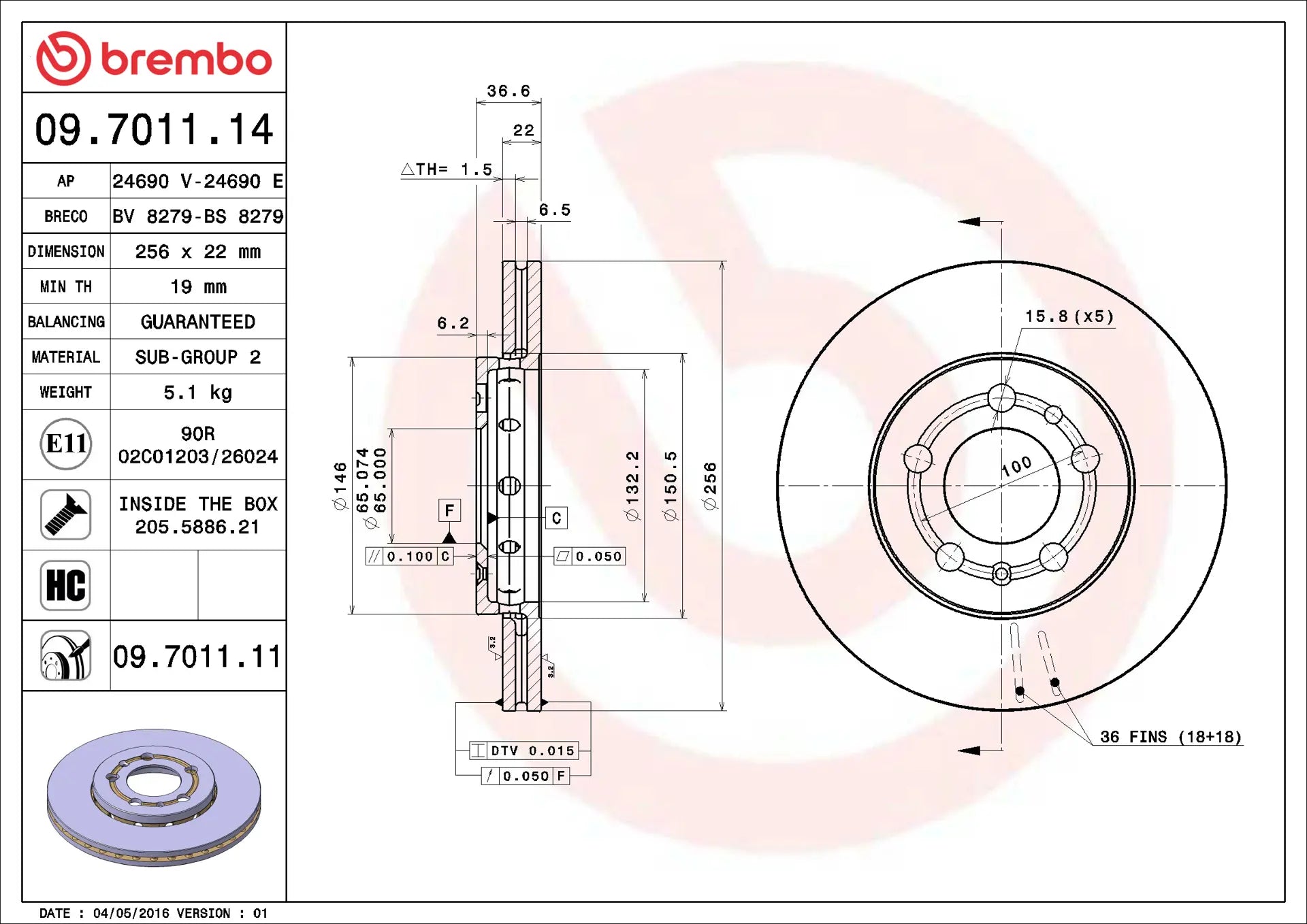

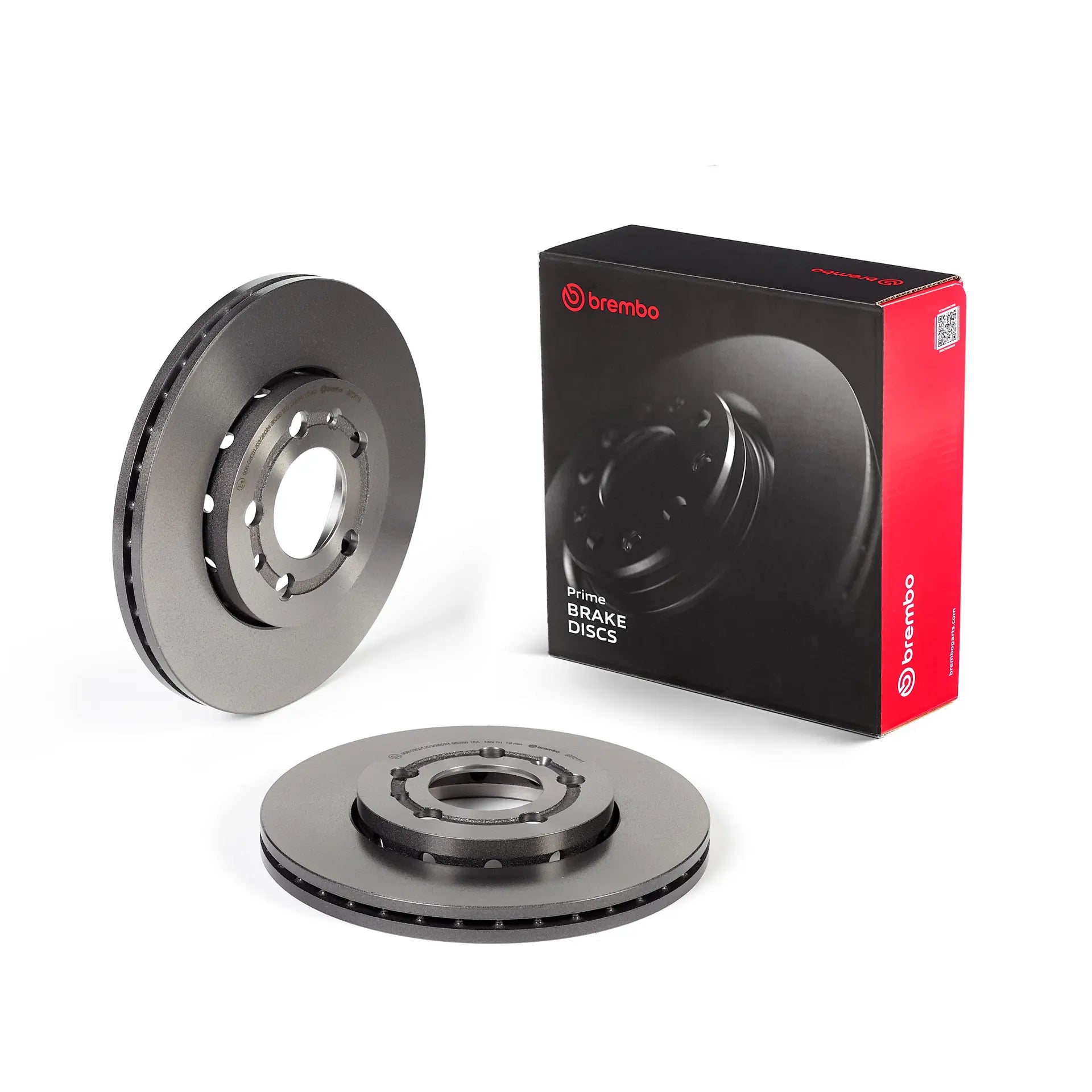

Brembo 09701111 is a front-axle brake disc for the Skoda Fabia, Rapid & VW Polo, Polo GT, Vento, measuring 256 mm diameter and 22 mm thick.
Brembo Prime is the OE-equivalent disc line, developed for road use and finished with a corrosion coating.
Specification
| Diameter |
256 mm |
| Thickness |
22 mm |
| Minimum thickness |
19 mm |
| Height |
37 mm |
| Bolt holes |
5 |
| Centering bore |
65 mm |
| Disc type |
Ventilated |
| Axle |
Front |
| Units per box |
2 (left + right) |
| EAN code |
8020584023372 |
New thickness is 22 mm and the manufacturer's minimum is 19 mm. Measure at the thinnest point across the braking surface; once a disc reaches minimum thickness it must be replaced rather than resurfaced.
How do I know if my car is the 256 mm or the 288 mm?
This family was built with two different front brake systems and they do not interchange. Check the PR code on the sticker in the boot, usually under the spare wheel, or in the service book.
| PR 1ZG |
256 mm front discs. This part. |
| PR 1ZC |
288 mm front discs. This part will NOT fit. Message us and we will send the right one. |
The front brake pads differ between the two systems as well, so if you are replacing both, confirm the PR code first.
Fitment guidance
Listed against the Skoda Fabia, Rapid & VW Polo, Polo GT, Vento. Brake parts vary by variant, engine, build year and the braking system fitted, so send us your registration number and we will help you confirm the right part before you order.
Buying this part
GST-inclusive pricing with a proper invoice, shipped across India.
This listing covers the front axle. Brembo supplies this disc as a boxed set of two, so one unit does both wheels on the axle. You do not need to order two.
Specifications published by Brembo.
